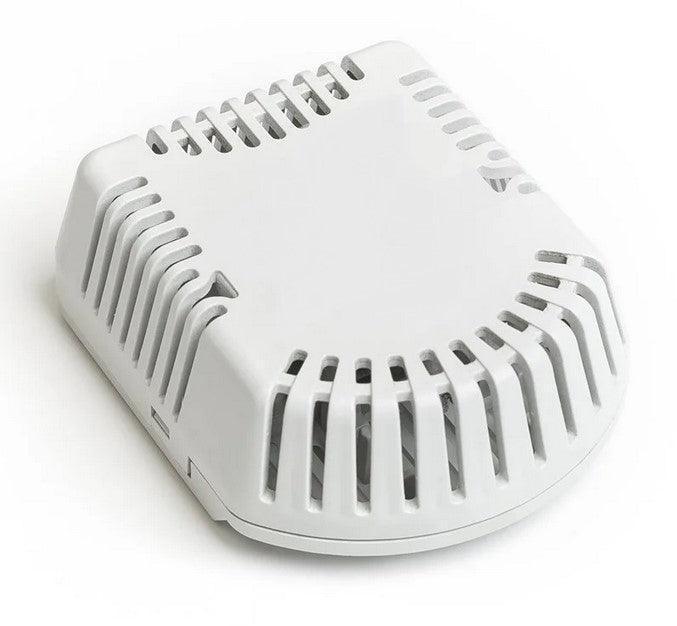

ThermGuard® TT201: Room temperature sensor for surface mounting

SKU: 1310/V

Description

Design: Compact version

Media temperature range: 0 °C ... 50 °C (preset)

Degree of protection: IP30

Housing material: Polyamide

Maximum load resistance: 150 Ω for Ucc = 12 V; 700 Ω for Ucc = 24 V

Analog signal
€64,80
Shipping will be charged at checkout.

Specification
  • Device type
    Analog Temperature Sensor
  • Temperature measuring range
    -30 ... 150°C
  • Temperature measuring accuracy
    -30 ... 150°C
  • Enclosure protection class
    IP30
  • Output signal
    Analog output
  • Signal output sensor break
    >23 mA, >10.5 V
  • Signal output Sensor short circuit
    <3.5 mA, ~0 V
  • Analog input
    0 ... 10 V, 4 ... 20 mA
  • Housing material
    Polyamide
  • Housing material
    Polyamide
  • Weight
    50 g
  • Dimensions
    72 mm x 59 mm x 27 mm
  • Power supply
    0 ... 10 V: 15 ... 30 V DC recommended, 4 ... 20 mA: 12 ... 30 V DC 12 V recommended
  • Load resistance
    150Ω for Ucc = 12 V 700Ω for Ucc = 24 V, >10 k Ω
  • Type of sensor element
    Pt1000/ 3850; class B
  • Ambient temperature
    -30 ... 70°C
  • Ambient humidity
    Max. 85% at 25 °C
  • Ambient
    87 … 107 kPa
