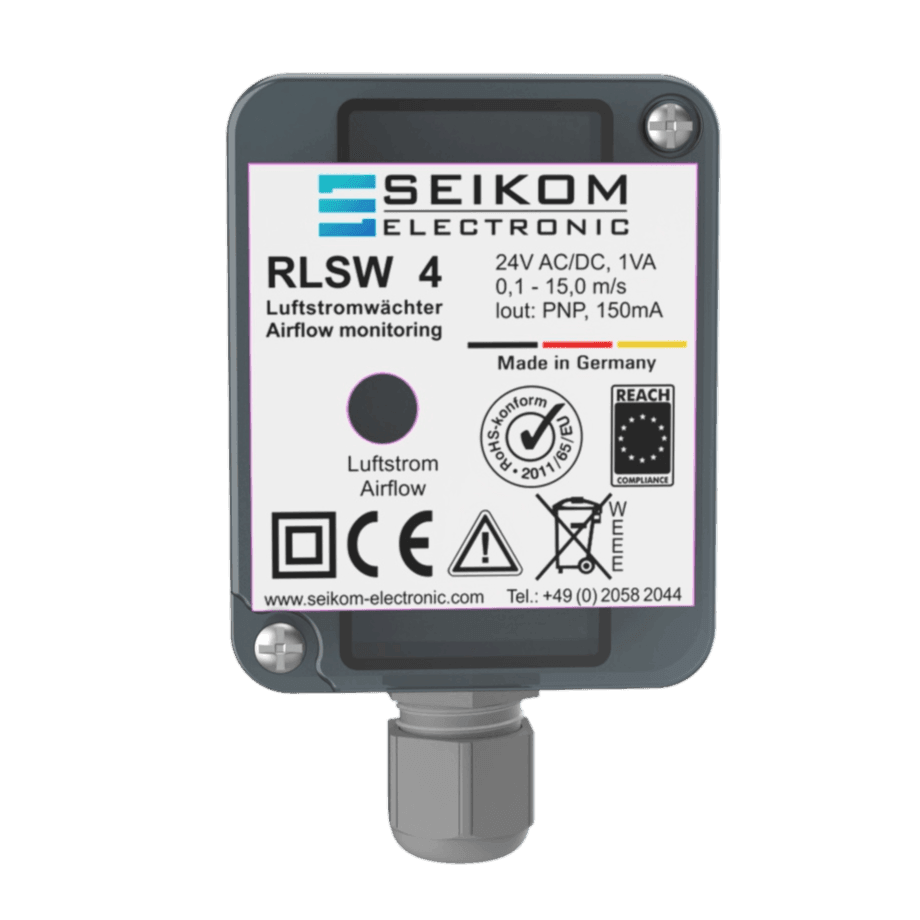

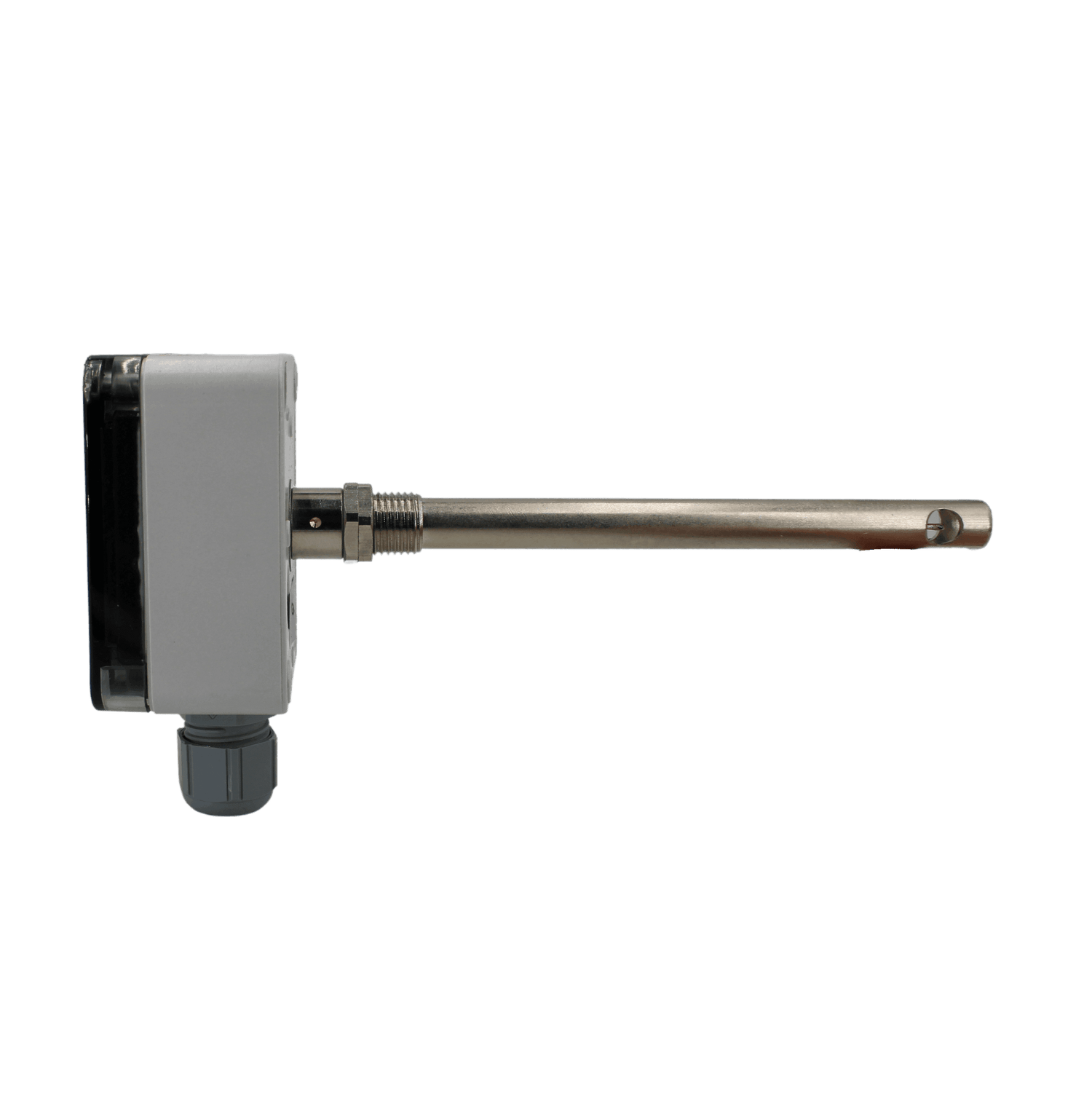

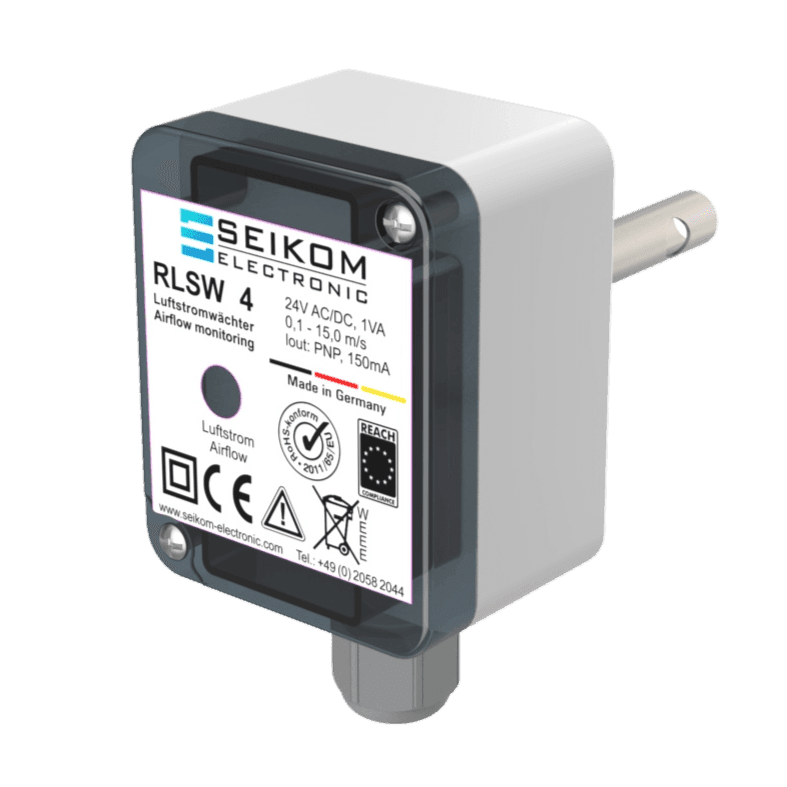

Compact flow monitor RLSW4R with relay output (NO), measuring range gases 0.1 ... 15 m/s
SKU:
74825R/50
Description
Description
✅ Compact air flow monitor with switching output (1 NO)
✅ Flow monitoring in the smallest installation space - ideal as an OEM solution, e.g. for soldering systems, extractor hoods, air curtain systems
✅ Robust sensor design with protection class IP67
✅ S witching point continuously adjustable between 0.1 ... 15 m/s (extended measuring range available with RLSW5)
✅ Exemplary areas of application: Monitoring of fans, heating registers, extraction, soldering and air curtain systems
Compact flow monitor RLSW4R with relay output (NO), measuring range gases 0.1 ... 15 m/s - 50 mm is in stock and will be shipped as soon as it is available again
€130,20
Base price
/
Not available
Shipping will be charged at checkout.
Availability for pickups could not be loaded
Specification
Specification
-
MediumGases
-
Device typeCompact flow device
-
Device typeCompact device including sensor (permanently mounted)
-
Flow measuring range0,1 ... 15 m/s
-
Media temperature-10 ... 80°C
-
Displayyellow LED at flow velocity > switching point, green LED during operation
-
Switching pointStepless adjustment (potentiometer)
-
Protection class evaluation unitIP65
-
Sensor protection classIP67
-
Enclosure protection classIP65
-
Output signalSwitching output
-
Switching output specificationRelay picks up on flow (normally open contact)
-
Signal output sensor breakRelay drops out
-
Signal output Sensor short circuitRelay drops out
-
Relay output specificationRelay picks up on flow (normally open contact)
-
Immersion depth50 mm, 140 mm, Special lengths on request
-
Process connectionPG7, optional G1/2-inch, G1/4-inch by means of reducer
-
Housing materialPolycarbonate, UL94-V2
-
Material sensorMS58, nickel-plated, Stainless steel available as an option
-
Compressive strength10 bar
-
Housing materialPolycarbonate, UL94-V2
-
Weight
-
Housing dimensions85 mm x 50 mm x 35 mm
-
Power supply24 V AC/DC ±5%
-
Electrical connection4 terminals (2.5 mm²)
-
Power consumption max1 VA
-
Current and contact load capacity250 VAC, 5 A, 1.2 kVA
-
Minimum switching capacity10 mA/ 5 V DC
-
Ambient temperature-20°C ... 60°C
-
Optimal run-in distance>5 DN
-
Optimal run-out distance>3 DN
-
Temperature gradient
-
CertificatesCE
-
