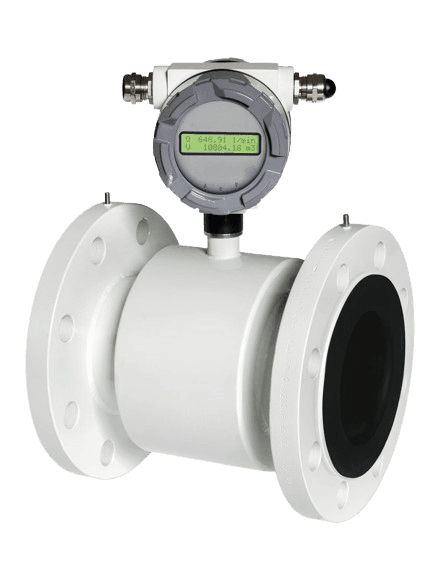

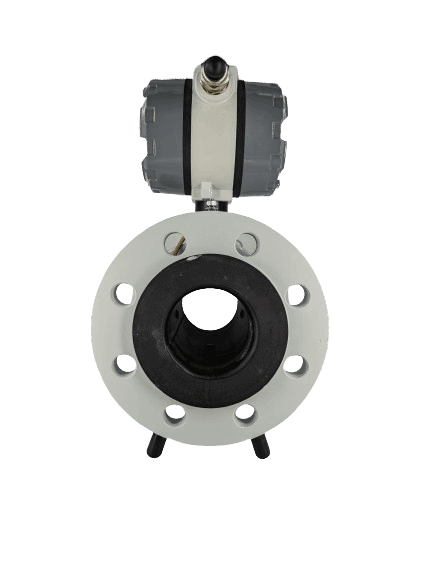

Electromagnetic flowmeter FlowGuard® FT410

SKU: 1315/K/DN4/G/PN16/PVDF/ST/65/1/24

Description

✅ Flow measurement from 0.06 to 12 m/s

✅ Bidirectional measurement with direction detection and empty conduit detection

With pulse output, analog signal (4-20 mA), HART and Modbus connection

✅ Different process connections and linings optimized for your process, with drinking water approval on request

✅ Special versions are also suitable as heat meters or for use in ATEX environments

Optionally available up to protection class IP68 and therefore ideal for industrial use

✅ Made for you and available at short notice within ~3 weeks

Diameter
Process connection
Lining
€1.430,00
Shipping will be charged at checkout.

Technical drawing 2D: Download

Operating instructions EN: Download

Operating instructions EN: Download

Data sheet DE: Download

Data sheet EN: Download

Specification
  • Medium
    Liquids
  • Device type
    Magnetic inductive flow meter
  • Device type
    Compact device, with remote evaluation unit (standard cable length 3 m)
  • Flow measuring range
    0.06 ... 12m/s, bidirectional measurement, max. (1/200)
  • Flow measurement accuracy
    ≤0.5% of the measured value
  • Media temperature
    Compact: max. 90°C (depending on version), Remote: max. 150°C (depending on version)
  • Display
    LCD display, 2×16 characters
  • Protection class evaluation unit
    Standard device (H - head) - IP65, Front device (F) - IP67, Panel device (P) - IP54
  • Sensor protection class
    IP65, IP67, IP68
  • Special features

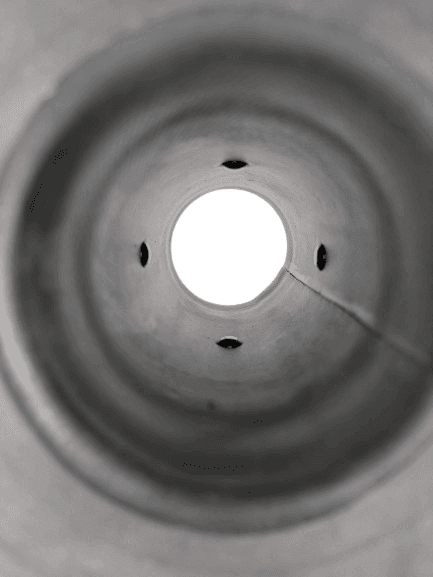

    Empty pipe detection DN15 ... DN600, Pressure loss negligible, Additional electrodes for earthing and detection of empty pipes
  • Output signal
    Pulse output, analog output, digital output
  • Signal output sensor break
    <3,5 mA
  • Process connection
    Sandwich (PN25 only), Flanged DIN (EN1092) - carbon or stainless steel, Thread (EN 10226-1) Food grade (DIN 11851 fitting, clamp)
  • Housing material
    Stainless steel, Steel ST37 (coated)
  • Material sensor
    Stainless steel DIN 1.4571, Hastelloy C4, titanium, tantalum
  • Compressive strength
    PN10, PN16, PN25, PN40, PN64, PN100, JIS: 10K, JIS: 20K, JIS: 40K, ANSI: 150lb, ANSI: 300lb
  • Housing material
    Stainless steel, Steel ST37 (coated)
  • Diameter
    DN4 ... 600 (other diameters on request)
  • Power supply
    24 VAC/ VDC with reverse polarity protection, 230 VAC (50/60 Hz), 110 VAC (60Hz), battery
  • Electrical connection
    Terminal 1 & 2: Analog output 4...20 mA, Terminal 3 & 4: Pulse output / flow switch 1, Terminal 5 & 6: RS485, Terminal 7 & 8: Pulse output / flow switch 2, Terminal 9 & 10: Reset of the volume register, Terminal 11 & 12: Output voltage 16V/100mA (power supply for switching to active current and pulse outputs), Terminal L, N, PE: Power supply
  • Power consumption max
    4.6 VA
  • Ambient temperature
    0 ... 55°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS Code
    90 26 80
  • Reproducibility of the output signal
    0,2%

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Horst Jedek
Reliable sensor

Have had the device since July and am satisfied. Installation was straightforward and the accuracy is impressive.
Sensor works reliably. Overall, highly recommended for industrial applications.

F
Felix Kungert
Super service & easy installation, device runs reliably

We have been using the device for approx. 4 weeks for flow measurement in a drinking water pipe (WAZV).
Very professional advice from the seikom team. Device was delivered on time. Installation and IBN went smoothly. Any time again!
