FlowGuard® FS400 Ex Flow monitoring of liquid media with analog (4 ... 20 mA) and switching output for ATEX zones 0, 1, 2
Description
Description
✅ Flow monitor for liquid media in the range of 4 ... 400 cm/s with analog (4 ... 20 mA) and status output (PNP, NPN) for monitoring a flow threshold

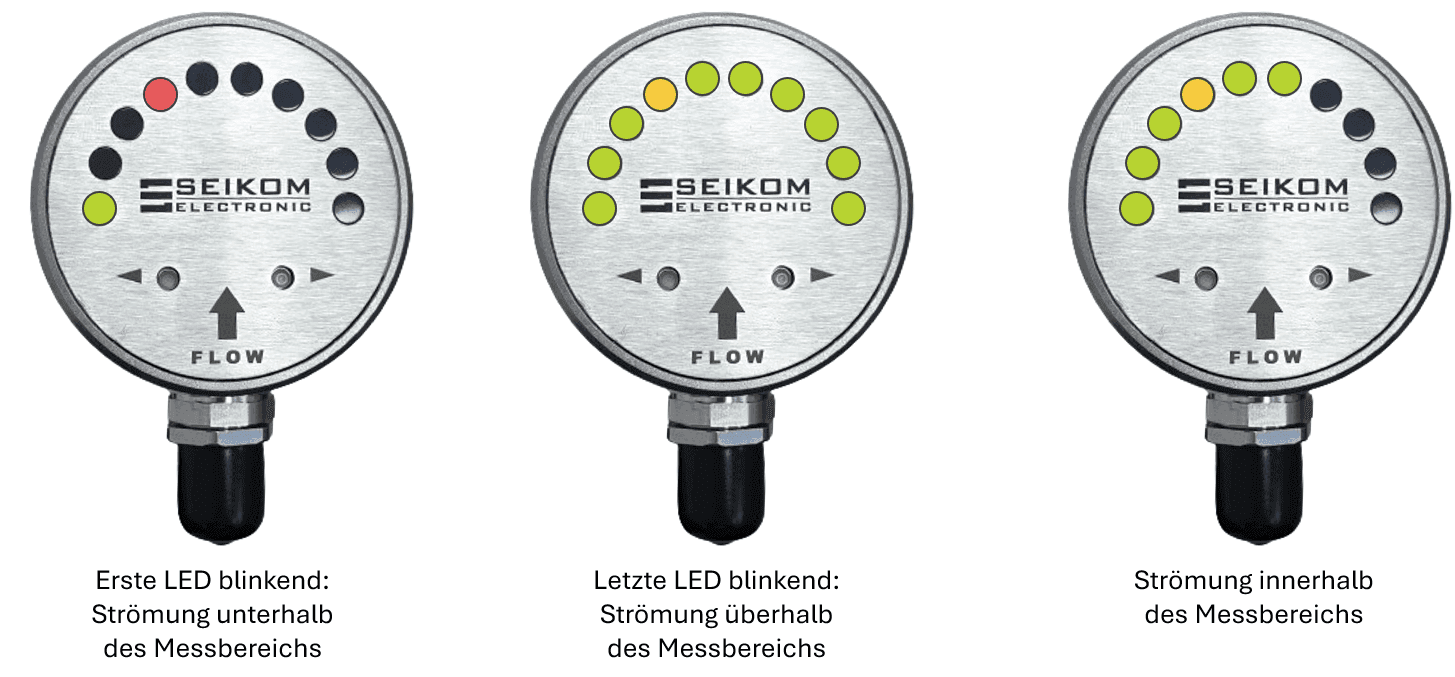

✅ Ten LEDs indicate flow rate and contact closure
✅ Equipped with 2 control buttons for setting the switching point
✅ Available with 65 mm and 125 mm installation depth
✅ Robust design for industrial environments, IP67
✅ Process connection: according to DIN2353, suitable for adapters G1/2-inch or G1/4-inch (not included in the scope of delivery), adapters for NPT1/4-inch, M14x1.5, terminal DN25 and terminal DN50 also available on request)
✅ Areas of application: Water industry, agriculture, biogas plants, food industry, power plants and many more.
FlowGuard® FS400 Ex Flow monitoring of liquid media with analog (4 ... 20 mA) and switching output for ATEX zones 0, 1, 2 - 65 mm is in stock and will be shipped as soon as it is available again
Availability for pickups could not be loaded
Data sheet DE: Download
Specification
Specification
-
MediumLiquids
-
Device typeCompact flow device
-
Device typeCompact device including sensor (permanently mounted)
-
Flow measuring range0.04 m/s ... 4 m/s
-
Flow measurement accuracy±0.02 ... 0.08 m/s
-
Media temperature0 ... 80°C
-
Display10 three-color LEDs for flow velocity, 1 LED for temperature
-
Switching pointStepless adjustment via 2 buttons
-
Protection class evaluation unitIP67
-
Sensor protection classIP67
-
Special featuresEmpty pipe detection is displayed as 0 flow, Calorimetric measuring principle, optional relay output for media temperature, optional 2 relay outputs for flow bandwidth
-
Output signalAnalog output, switching output
-
Switching output specificationSwitching output active PNP/ NPN switches on flow
-
Relay output specificationSwitching output active PNP/ NPN switches on flow
-
Immersion depth65, 125, Special lengths on request
-
Process connectionG1/2-inch
-
Housing materialStainless steel 1.4404
-
Material sensorStainless steel 1.4404
-
Compressive strength63 bar
-
Housing materialStainless steel 1.4404
-
Weight
-
Housing dimensions91 mm x 74 mm x 60 mm
-
Power supply24 V DC ±10%
-
Electrical connectionM12 x 1 / 4 pin connector
-
Power consumption max1.5 ... 4 VA
-
Current and contact load capacity60 V, 130 mA, 500 mW, SSR, passive, potential-free, max. 350 V AC/DC, 150 mA, 400 mW
-
Ambient temperature-10 ... 55°C
-
Optimal run-in distance>5 DN
-
Optimal run-out distance>3 DN
-
CertificatesCE
-
ATEX certificationEx I M1 Ex ia I Ma, Ex II 1G Ex ia IIC T4..T6 Ga, Ex II 2D Ex ia IIIC T85°C...T135°C Db
-
