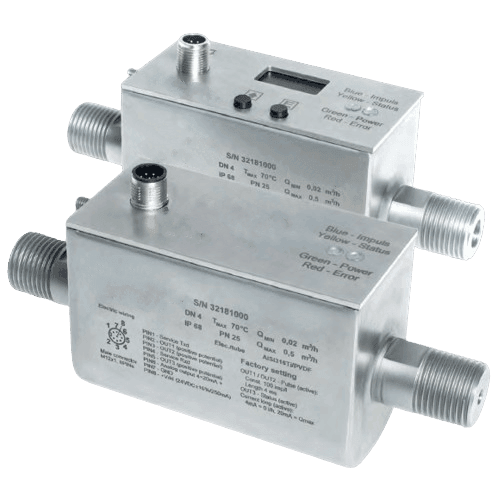

Electromagnetic flowmeter FlowGuard® FT407

SKU: 1317/DN6/G/O/1/IP65

Description

900 measurements per second enable precise dosing processes
Meets the highest demands in terms of measuring accuracy (2% of the measured value) and repeatability (0.5%)
Can be used with media temperatures up to 70°C
Large measuring range from 0.02 m³/hr. to 25 m³/h depending on pipe diameter (DN4...DN32)
IO-Link and Bluetooth communication possible
2 freely configurable outputs
High operating convenience thanks to optionally available LCD
Compact design for use in small installation spaces

Diameter
Display
Output signal
€543,00
Shipping will be charged at checkout.

Operating instructions EN: Download

Specification
  • Medium
    Liquids
  • Device type
    Magnetic inductive flow meter
  • Device type
    Compact device
  • Flow measuring range
    0,2 … 10 m/s, Bidirectional Measurement
  • Flow measurement accuracy
    at 1 ... 10 m/s: 1%, at 0.2 ... 1 m/s: 2%
  • Media temperature
    -25 ... 70°C
  • Display
    4x LED, LCD display, 4x8 characters (optional)
  • Protection class evaluation unit
    IP65
  • Sensor protection class
    IP65
  • Special features
    Sampling 900 samples per second (standard)
  • Output signal
    Pulse output, analog output, digital output
  • Process connection
    DN4... DN15 - G1/2-inch, DN20 - G3/4-inch, threads (EN ISO 228-1), Milk pipe fitting DIN11851, Clamp DIN32676
  • Housing material
    Stainless steel, Steel ST37 (coated)
  • Material sensor
    CrNi steel DIN 1.4571
  • Compressive strength
    25 bar
  • Housing material
    Stainless steel, Steel ST37 (coated)
  • Diameter
    DN 4...20
  • Power supply
    24 V DC ±15%
  • Electrical connection
    M12x1, with reverse polarity protection
  • Power consumption max
    3 VA
  • Ambient temperature
    0 ... 55°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS Code
    90 26 80
  • Reproducibility of the output signal
    0,5%
  • Accessories
    Grounding rings, Modbusboard, Datalogger with SD card
