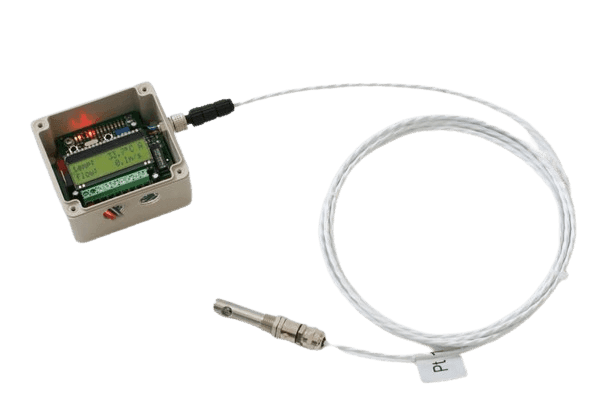

RLSW8 volumetric flow meter for measuring the flow of gases up to 350°C

SKU: 81530F3/50

Description

Volume flow and air flow velocity meter with linear analog output in control quality (0 ... 10 V & 4 ... 20 mA) and switch

Suitable for media temperatures up to 350°C

Measured value display via LCD and LED

Freely scalable measuring range m/s, m³/h, l/min

Sensitive and fast airflow detection up to 30 m/s

Exemplary areas of application: Measurement and control of air flows, building technology, PLC, filter monitoring, extraction and extrusion systems, exhaust gases and test benches


Operating instructions (German/ English)

Device type
Media temperature
Immersion depth
€349,60
Shipping will be charged at checkout.

Operating instructions EN: Download

Operating instructions EN: Download

Specification
  • Medium
    Gases
  • Device type
    Compact flow device
  • Device type

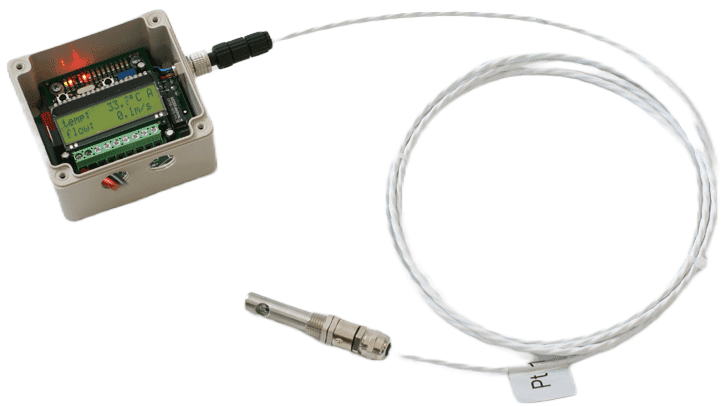

    Compact device including sensor (permanently mounted), Compact device including sensor (remote)
  • Flow measuring range
    0,1 ... 30 m/s (optionally available up to 200 m/s)
  • Flow measurement accuracy
    ±5% of full scale value, Reproducibility ±2% of full scale value
  • Media temperature
    -25 ... 80°C, -25 ... 250°C, -25 ... 350°C
  • Display
    LCD, yellow LED at flow velocities > switching point, green LED during operation, 10 red LEDs for the flow rate in 10% increments
  • Protection class evaluation unit
    IP65
  • Sensor protection class
    P67
  • Special features
    Linear analog output Flow velocities up to 200 m/s measurable Adjustable start-up delay 0 ... 60 s Velocity dimensions: m/s, l/min, m³/h, Linear analog output Applicable up to 350°C Medium temperature Flow velocities up to 200 m/s measurable Adjustable start-up bridging 0 ... 60 s Velocity dimensions: m/s, l/min, m³/h
  • Output signal
    Switching output, analog output
  • Switching output specification
    1 NO contact (closes/opens with flow, adjustable)
  • Signal output sensor break
    Fault-specific error codes in the LCD, 4 mA, Relay drops out
  • Signal output Sensor short circuit
    Fault-specific error codes in the LCD, 4 mA, Relay drops out
  • Relay output specification
    1 NO contact (closes/opens with flow, adjustable)
  • Immersion depth
    50, 130, 165, 300, 400, 500
  • Process connection
    PG7, optional G1/2-inch, G1/4-inch by means of reducer
  • Housing material
    Polyamide, UL94-V0
  • Material sensor
    MS58, nickel-plated (stainless steel available as an option), Stainless steel 1.4571
  • Compressive strength
    10 bar
  • Housing material
    Polyamide, UL94-V0
  • Housing dimensions
    56 mm x 84 mm x 80 mm
  • Power supply
    24 V DC ±5%
  • Electrical connection
    9 terminals (max. 1.5 mm²)
  • Power consumption max
    4 VA
  • Current and contact load capacity
    200 V AC/DC, 1 A
  • Minimum switching capacity
    10 mA, 5 V DC
  • Ambient temperature
    -20 ... 60°C
  • Optimal run-in distance
    >10 DN
  • Optimal run-out distance
    >5 DN
  • Temperature gradient
    30K/min
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS Code
    90 26 80
  • Pollution class
    II
