Evaluation unit NLSW45-3 SIL2, flow monitoring with SIL2 certification

SKU: 63377SIL2

Description

Flow monitoring with SIL2 certification in accordance with IEC 62061 (corresponds to performance level d in accordance with EN ISO 13849-1)

Wide measuring range from 0.1 to 35 m/s with media temperatures from 0°C to 60°C

With switching output suitable for switch cabinet installation

Developed for demanding industrial applications, IP40

Redundant design of the evaluation electronics and use of 2 sensors required

Power supply
€429,30
Shipping will be charged at checkout.

Operating instructions EN: Download

Operating instructions EN: Download

Specification
  • Medium
    Gases
  • Device type
    Flow evaluation unit for switch cabinet installation, or installation at the measuring point
  • Flow measuring range
    0.1 ... 30 m/s
  • Media temperature
    -20 ... 120°C
  • Display
    LED (voltage & switching point)
  • Switching point
    Stepless adjustment (potentiometer)
  • Protection class evaluation unit
    IP65
  • Special features
    2 sensors required (SIL2)
  • Output signal
    Switching output
  • Switching output specification
    2 changeover contacts (per channel)
  • Signal output sensor break
    Relay drops out
  • Signal output Sensor short circuit
    Relay drops out
  • Relay output specification
    2 changeover contacts (per channel)
  • Housing material
    Polyamide (UL94V-0)
  • Housing material
    Polyamide (UL94V-0)

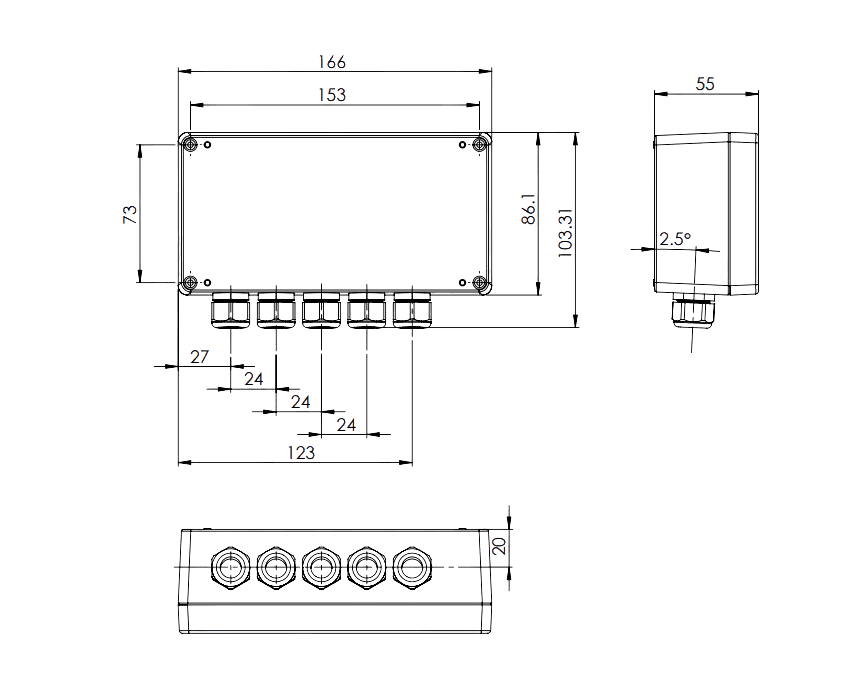

  • Housing dimensions
    85 mm x 165 mm x 55 mm
  • Assembly
    Mounting set included, Mounting on DIN rail optional
  • Power supply
    24 V AC/DC ±10%, 230 V AC ±5%
  • Electrical connection
    Terminal strip
  • Power consumption max
    5 VA
  • Recommended cable cross-section
    2.5 mm²
  • Current and contact load capacity
    250 VAC, 8 A, 2 kVA
  • Minimum switching capacity
    10 mA, 5 V DC
  • Ambient temperature
    -20 ... 60°C
  • Certificates
    CE
  • SIL level
    SIL2
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS Code
    90 26 80

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ralph Bürger
Good service, runs reliably

Used in a hall with maintenance pits for hydrogen vehicles. Requirement for monitoring by TÜV.
I found the device online and am satisfied: quick quotation, all information directly together, helpful support with the proof of intrinsic safety

A
Axel Graupner
The handling is well thought out.

Accurate and reliable. That's all you want.
