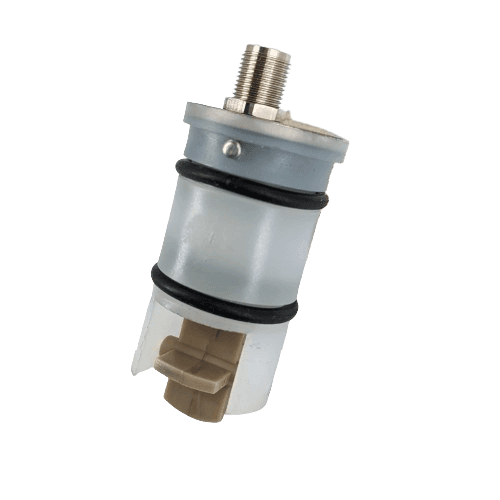

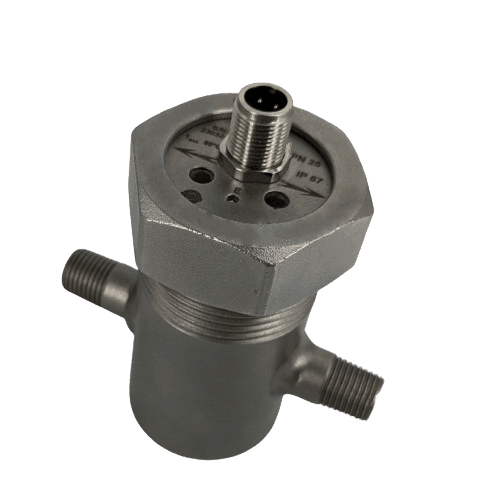

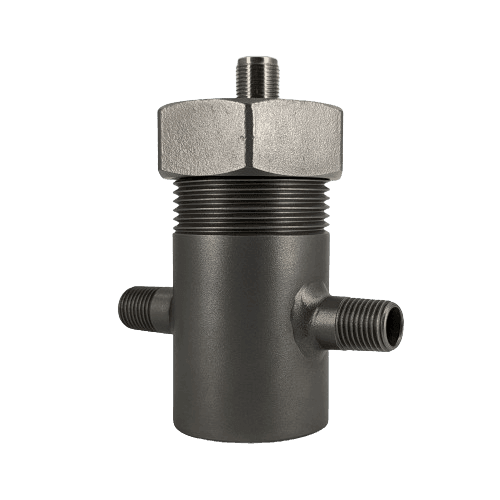

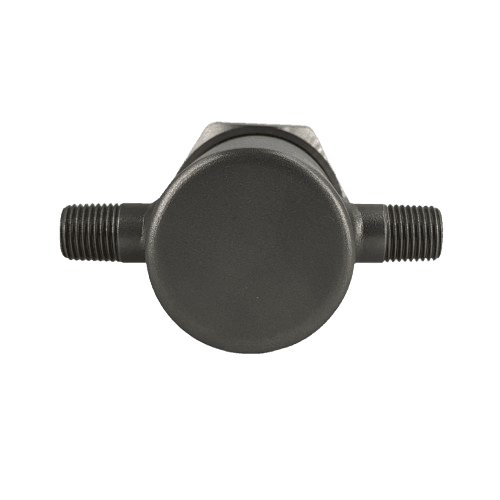

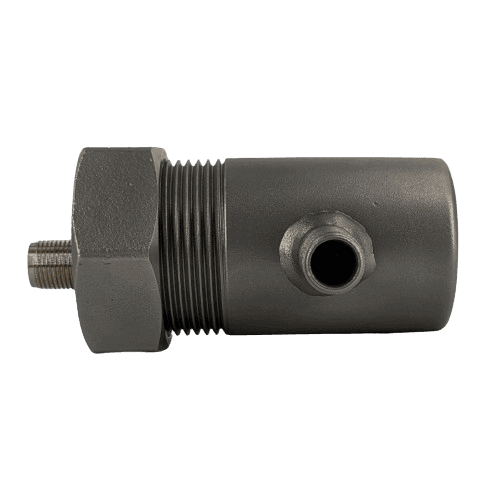

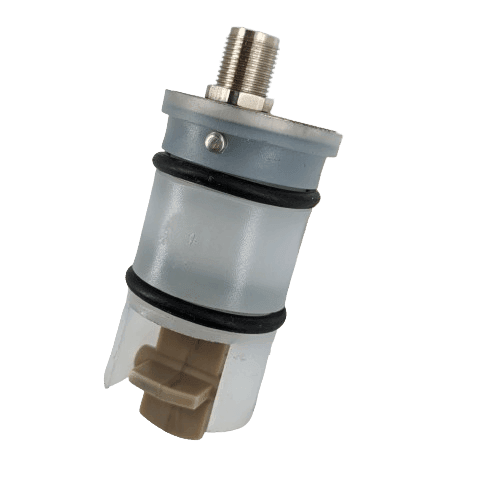

FlowGuard® FT401 - Impeller flowmeter

SKU: 1399

Description

Flow monitor for liquid media in the range with analog (4 ... 20 mA) and status output (PNP, NPN) for monitoring a flow threshold

Two LEDs indicate flow rate and contact closure

Robust design for industrial environments, IP67

Areas of application: Water treatment plants, agriculture, biogas plants and many more.

€189,20
Shipping will be charged at checkout.

Data sheet DE: Download

Specification
  • Medium
    Liquids
  • Device type
    Compact flow device
  • Device type
    Compact device including sensor (permanently mounted), paddle wheel flow meter
  • Flow measuring range
    0.3 ... 6.0 m/s , (depending on the adapter/pipe geometry used)
  • Flow measurement accuracy
    1 ... 6 m/s: ± 3%, 0.3 ... 1 m/s ±5 %
  • Media temperature
    -10 ... 100°C
  • Display
    Two LEDs (voltage and current)
  • Protection class evaluation unit
    IP67
  • Sensor protection class
    IP67
  • Special features
    Integrated self-diagnosis after start-up
  • Output signal
    Pulse output, analog output, switching output
  • Switching output specification
    Switching output, adjustable closer
  • Relay output specification
    Switching output, adjustable closer
  • Process connection
    G3/8-inch, alternatively adapter
  • Housing material
    Plastic
  • Material sensor
    PVDF (impeller suspension), PEEK (impeller), zirconium-ceramic (impeller axle), Stainless steel DIN 1.4115 (bolt in propeller paddle) , Seal O-rings (EPDM/NBR)
  • Compressive strength
    25 bar
  • Housing material
    Plastic
  • Housing dimensions
    90 mm x 39 mm x 39 mm
  • Power supply
    24 V DC ±10%
  • Electrical connection
    M12x1 (4-pin), with reverse polarity protection
  • Load resistance
    400 Ω
  • Current and contact load capacity
    PNP active (max. 50 mA)
  • Ambient temperature
    0 ... 55°C
  • Ambient humidity
    max. 90%
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS Code
    90 26 80
  • Hysteresis
    0.02 ... 0.08 m/s (flow)
  • Reproducibility of the output signal
    ±1% of the measuring range
