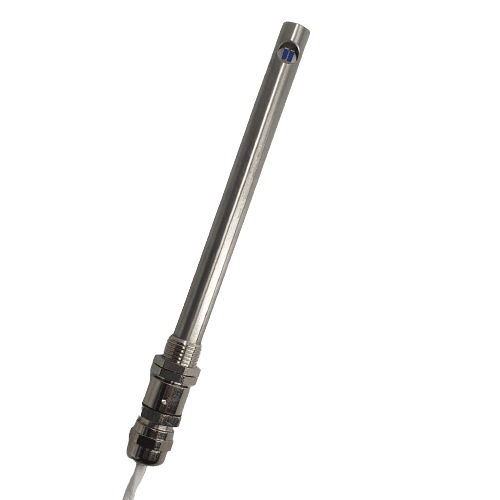

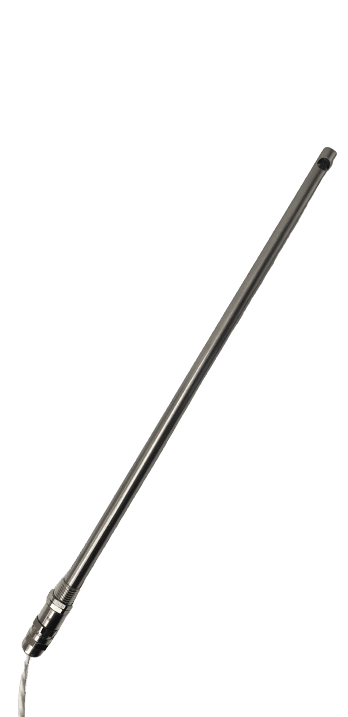

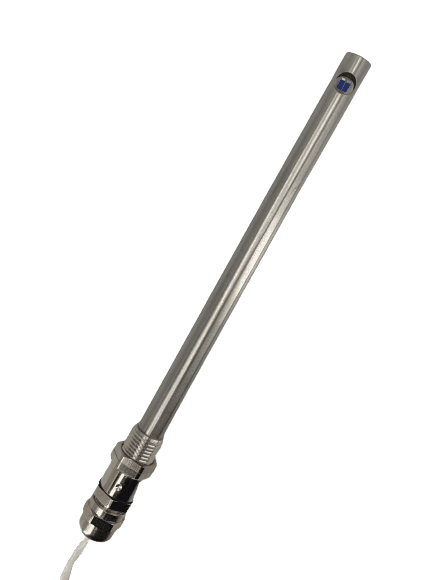

Sensor F8 SIL2 400°C associated with NLSW45-6.1 SIL2
Description
Description
✅ Sensor for flow monitoring of gases up to 400°C
✅ Can be usedin combination with evaluation unit NLSW®45-6.1 SIL2
Measuring range 0.1 ... 30.0 m/s and media temperatures up to 400°C (for environments up to 250°C: F8 SIL2 250°C)
✅ Material: stainless steel (V4A)
✅ Standard cable length 2.5 m - optionally extendable up to 30 m
✅ For easy installation and alignment of the sensor in the air flow: Use screw-in adapter (available separately)
✅ Special lengths availableon request
⚠️ Note: SIL2 certification only guaranteed in redundant version (2 sensors) in conjunction with evaluation unit NLSW45-6.1 SIL2
Sensor F8 SIL2 400°C associated with NLSW45-6.1 SIL2 - 50 mm is in stock and will be shipped as soon as it is available again
Immediately available from stock
Availability for pickups could not be loaded
Specification
Specification
-
MediumGases
-
Device typeFlow sensor
-
Device typeSensor
-
Flow measuring range0.1 m/s ... 30 m/s
-
Sensor protection classIP50
-

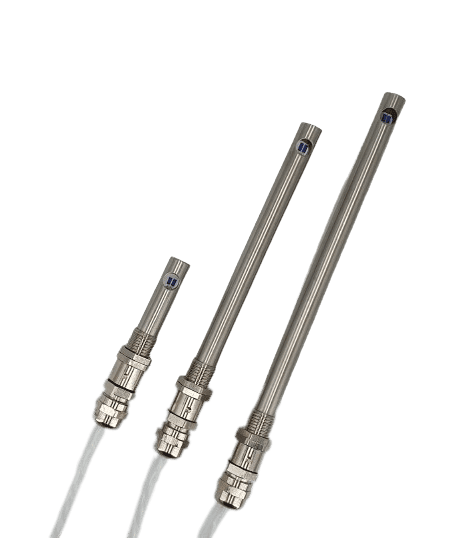

Immersion depth50 mm, 130 mm, 165 mm, 300 mm, 400 mm, 500 mm, Special lengths on request
-
Process connectionPG7, optional G1/2-inch / G1/4-inch by means of reducer
-
Material sensorStainless steel 1.4305
-
Compressive strength10 bar
-
Electrical connectionStandard cable length 2.5 m, Special lengths on request 3 x 0.5 mm²
-
Temperature gradient
-
CertificatesCE, Type-tested TÜV Nord according to DIN EN 61010-1 2011-07
-
SIL levelSIL2
-
