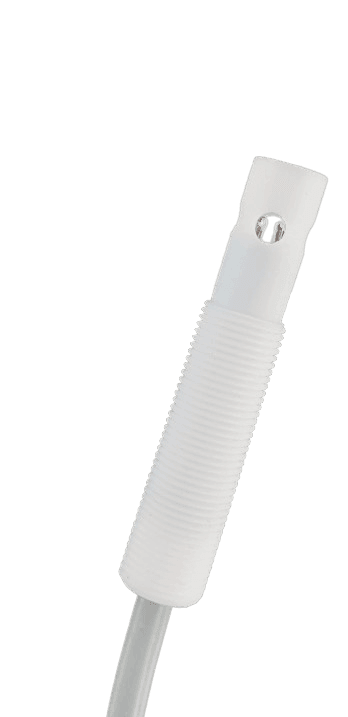

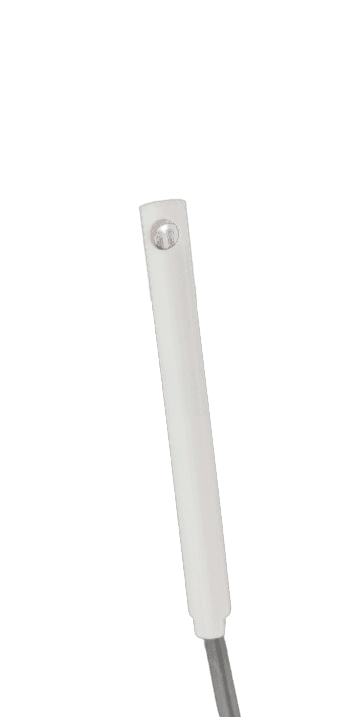

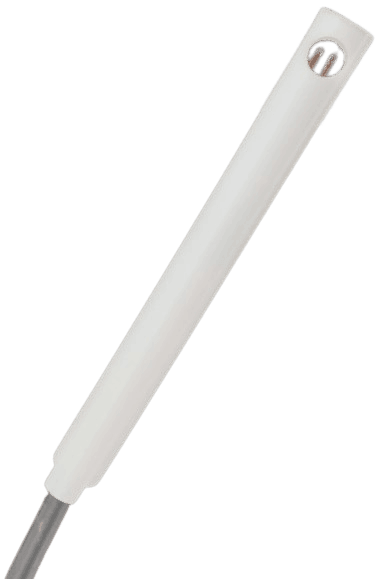

Sensor F4 Teflon

SKU: 50311/60

Description

Immersion depth

60 mm 115 mm 145 mm

Product variants

€187,10

Shipping will be charged at checkout.

Immediately available from stock

Specification

Medium

Gases
Device type

Flow sensor
Device type

Sensor
Flow measuring range

0.1 m/s ... 30 m/s
Media temperature

-20 ... 90°C
Sensor protection class

IP67
Immersion depth

60 mm, 115 mm, 140 mm, Special lengths on request
Process connection

M12x1
Material sensor

Teflon
Compressive strength

6 bar
Electrical connection

Standard cable length 2.5 m, Special lengths on request 3 x 0.5 mm²
Temperature gradient

30K/min
Certificates

CE, Type-tested TÜV Nord according to DIN EN 61010-1 2011-07
Customs tariff number

90 26 80 20
HS Code

90 26 80
