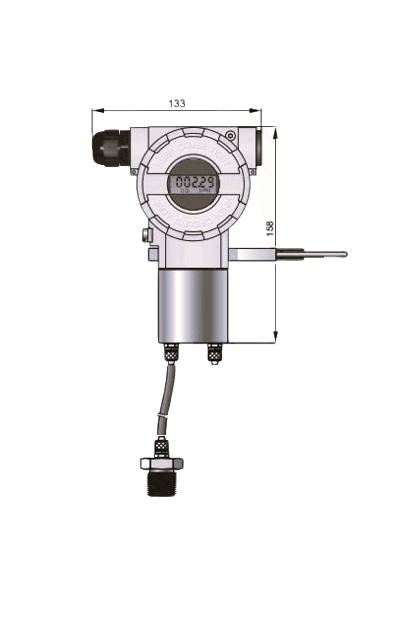

PressGuard® DPT201 (EX SIL) - Differential pressure transmitter with optional SIL2/3 classification and ATEX certification for gas and dust

SKU: 1402/-10000-10000/AL/-/G0.5

Description

✅ Robust pressure transmitter for industrial applications usable up to 85°C ambient temperature

✅ Compact design for installation in small spaces

Protection class IP66

✅ Outstanding corrosion and wear resistance

✅ High reliability and long service life

ATEX zone
Pressure measuring range
Material Housing and Process Connection
€799,65
Shipping will be charged at checkout.

Technical drawing 3D: Download

Technical drawing 2D: Download

Data sheet DE: Download

Data sheet EN: Download

Specification
  • Device type
    Smart differential pressure transmitter also for low measured values
  • Device type
    Compact: Sensor and evaluation unit permanently installed
  • Measuring range pressure rel.
    < ±0.1/ 10°C; max. ±0.4%
  • Differential pressure measuring range
    -10000 … 10000 Pa, -2500 … 2500 Pa, -500 … 500 Pa, -250 … 250 Pa, More on request
  • Display
    LCD (illuminated)
  • Enclosure protection class
    IP66
  • Output signal
    Analog signal, HART
  • Process connection
    G1/2-inch, alternatively with connection nipple for 6 mm hoses
  • Housing material
    Aluminum, alternatively stainless steel
  • Housing material
    Aluminum, alternatively stainless steel
  • Vacuum resistance
    Yes
  • Power supply
    11.5 ... 36 V DC
  • Ambient temperature
    -30 ... 85°C
  • Temperature compensation
    -10 ... 70°C
  • ATEX certification
    Exia, ExiaDa, Exd2G, none
  • SIL level
    SIL2, SIL3, none
  • Country of origin
    Poland

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Holger Pfändl
Filter monitoring of existing system

Device is used to monitor a filter. Existing system with TÜV requirement that monitoring must be carried out in accordance with SIL2 (no ATEX).
I have used flow monitors in the past, but they did not fit here structurally.

The hoses were quickly fitted and the device put into operation. Problem-free monitoring ever since.
