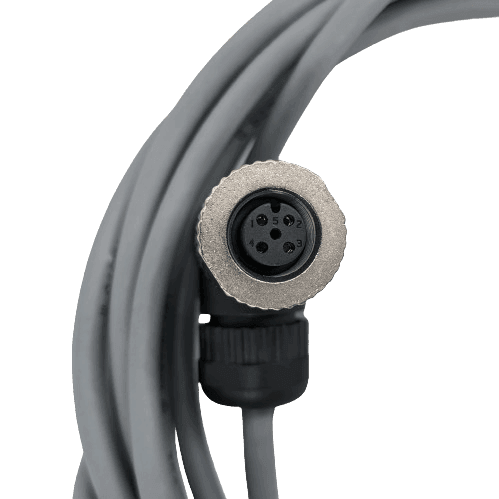

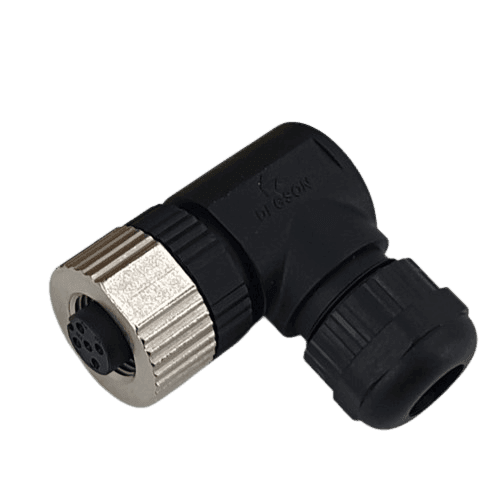

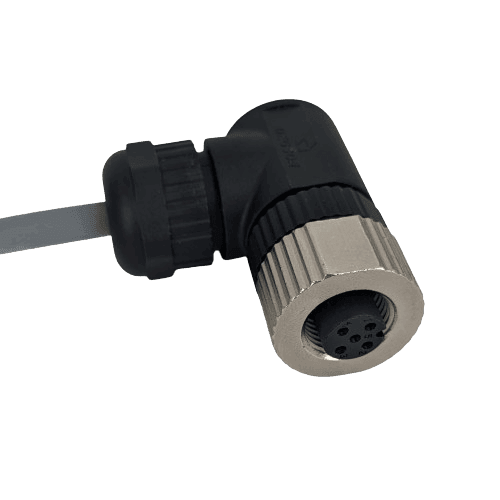

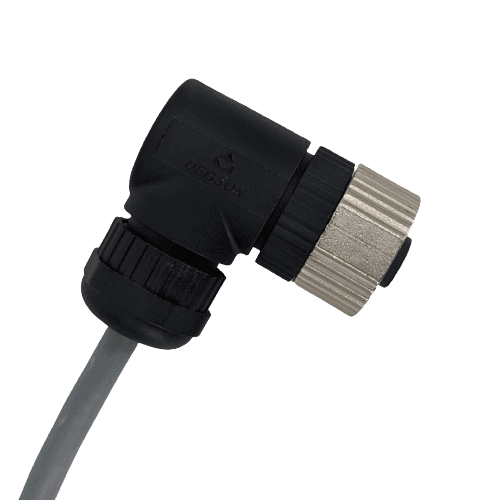

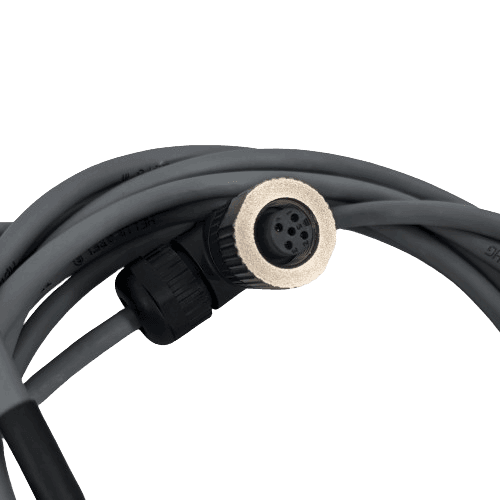

Connection M12, 4 PIN suitable for FlowGuard® FS400, FT401

SKU: 1386

Description

M12 plug for the FS400 flow monitor for liquid media in the range of 4 ... 400 cm/s with analog (4 ... 20 mA) and status output (PNP, NPN) for monitoring a flow threshold

Optionally, a connection cable can also be pre-assembled on request

€17,00

Shipping will be charged at checkout.

Specification

Electrical connection

4 PIN, M12x1

Connection M12, 4 PIN suitable for FlowGuard® FS400, FT401

€17,00

M12 plug for the FS400 flow monitor for liquid media in the range of 4 ... 400 cm/s with analog (4 ... 20 mA) and status output (PNP, NPN) for monitoring a flow threshold

Optionally, a connection cable can also be pre-assembled on request
