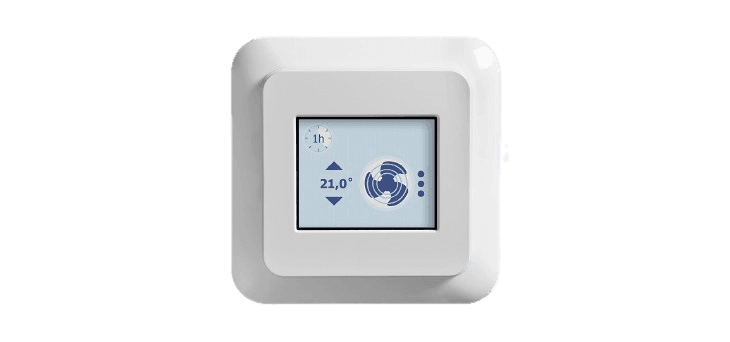

OJ-AIR2-HMI-20T - Touch Control: Panel 2"

SKU: 1504

Description

- OJ Air2 and AHC-3000 compatible
- User-friendly
- Built-in temperature sensor
- QuickPlug™ installation

€141,30

Shipping will be charged at checkout.

Specification

Display

TFT color touch display
Enclosure protection class

IP21
Weight

80 g
Dimensions

82 mm × 82 mm × 40 mm
Power supply

24 V= ±10 %
Electrical connection

max. 1 mm², Screw terminal
Power consumption max

0,8 W
Ambient temperature

-10 … 40°C
Manufacturer

OJ Electronics

OJ-AIR2-HMI-20T - Touch Control: Panel 2"

€141,30

- OJ Air2 and AHC-3000 compatible
- User-friendly
- Built-in temperature sensor
- QuickPlug™ installation
