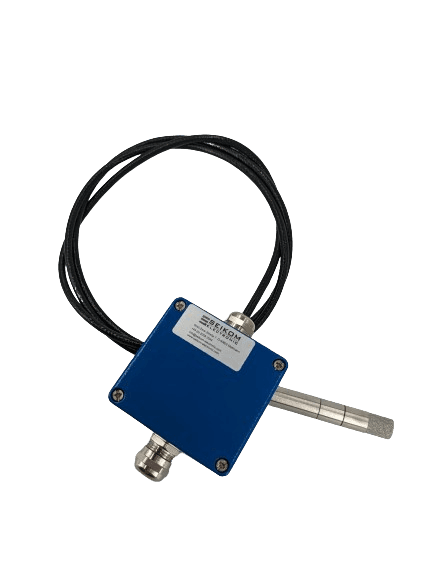

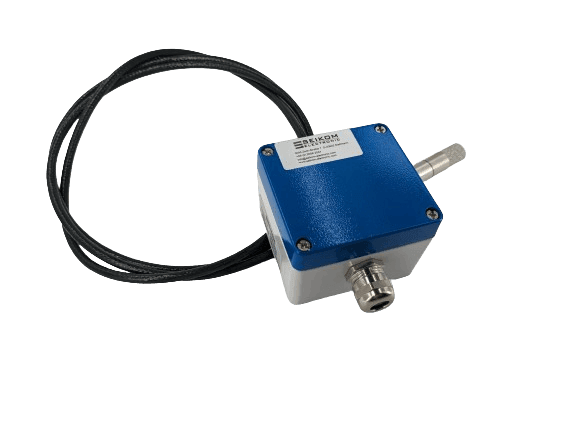

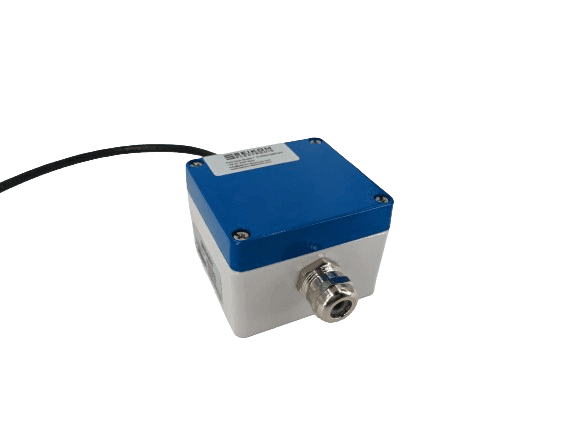

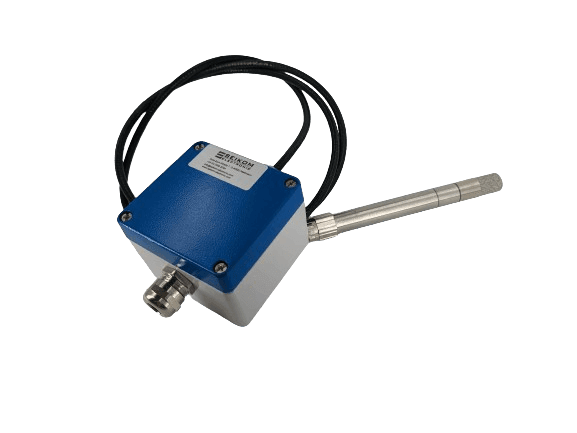

HumiGuard® HT200 - Humidity and temperature transmitter for environments up to 125°C

SKU: 1376/K

Description

  • Reliable and precise measurement technology for optimum measurement of humidity and temperature
  • Optionally available as a compact device or with remote sensor
  • Versatile areas of application due to use in areas up to 125°C
  • Robust design
Device type
€487,20
Shipping will be charged at checkout.

Approx. 5 working days

Specification
  • Medium
    Air, non-aggressive
  • Device type
    Humidity and temperature transmitter
  • Device type
    Compact/channel version, Transducer version with two-part, remote probe
  • Media temperature
    -40 ... 125°C
  • Protection class evaluation unit
    IP65
  • Sensor protection class
    IP65
  • Special features

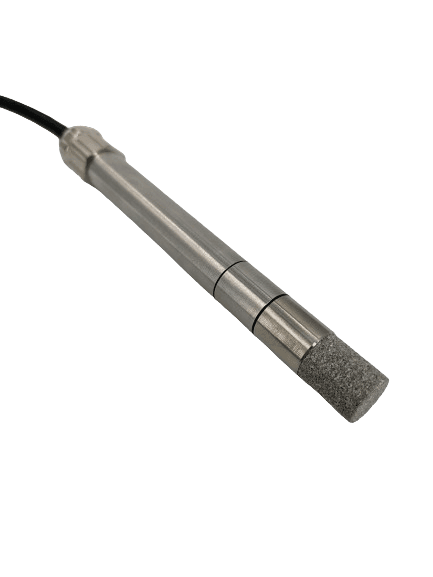

    Ambient temperatures from -40 ... 125°C possible, if probe is split in two: Probe: 64 mm probe tube, 1.5 m special Teflon cable, 104 mm probe tip
  • Output signal
    Analog output
  • Immersion depth
    231 mm, two-part: 125mm
  • Process connection
    Duct mounting
  • Housing material
    Die-cast aluminum
  • Material sensor
    Stainless steel
  • Housing material
    Die-cast aluminum
  • Housing dimensions
    80 mm x 75 mm x 57 mm
  • Diameter
    Ø15 mm
  • Power supply
    10 ... 30 V DC
  • Electrical connection
    Cable gland: clamping range Ø3 ... 7mm, screw terminals
  • Recommended cable cross-section
    max. 1.5 mm²
  • Load resistance
    Voltage output: ≥10 kΩ, Current output: Load, RL (Ω)= ((supply voltage -10 V)/0.02 A) ±50 Ω
  • Ambient temperature
    -40 ... 125°C
  • Storage temperature
    -40 ... 125°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20
