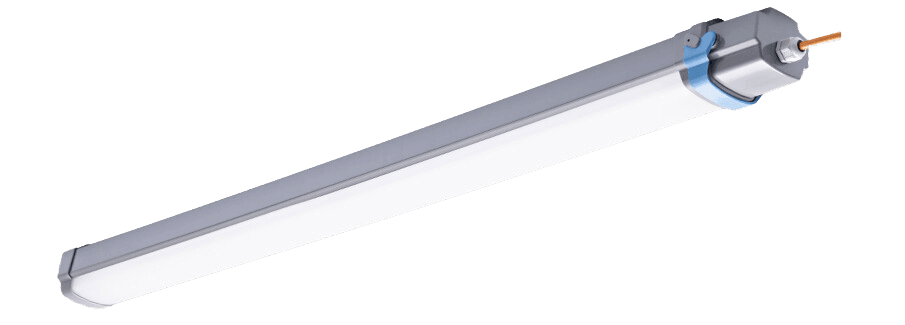

Moisture-proof luminaire LED KE
Description
Description
✅ The protected luminaire, ready for the future, robust for a wide temperature range, up to 55ºC
✅ Particularly suitable for automotive production, logistics, warehouses, high-bay warehouses >8 m
KE combines the best of extrusion and injection-molded luminaires and offers high durability and full adaptability
✅ Innovative lever locking system, for quick and secure installation, prepared for vandal-proof environments
✅ Fast and safe connection with up to 8 poles, ready for through-wiring, phase connection, emergency etc.
Wall or ceiling mounting possible
✅ Available with emergency light function suitable for various needs
Moisture-proof luminaire LED KE - 1.2 m / 4000 lm / With emergency light function is in stock and will be shipped as soon as it is available again
Availability for pickups could not be loaded
Data sheet EN: Download
Specification
Specification
-
Device typeMoisture-proof LED light
-
Enclosure protection classIP66/69k
-
IK impact strength gradeIK10
-
Luminous flux4000 ... 10000 lm, depending on model (see data sheet)
-
Emergency lighting currentwith EB3: 700 lm, for 3 hours
-
Light color4000K
-
Color rendering index CRI>80
-
Flicker factor<1%
-
Power factor>0.95 Full load
-
Housing materialHousing support: White painted sheet steel, upper part dark gray RAL 7046, End caps: Injection-molded polycarbonate, Diffuser: Extruded polycarbonate with UV protection, Gasket: Removable and recyclable thermoplastic elastomer, Fixing clips: Stainless steel
-
Housing materialHousing support: White painted sheet steel, upper part dark gray RAL 7046, End caps: Injection-molded polycarbonate, Diffuser: Extruded polycarbonate with UV protection, Gasket: Removable and recyclable thermoplastic elastomer, Fixing clips: Stainless steel
-
Weight
-
Cable entryCable gland (M20 or M25)
-
Power supply220-240 V AC, 0 ... 50/60Hz
-
Electrical connection3 to 8-pole WAGO quick connection, cable gland
-
Performance26 ... 64 W, depending on model (see data sheet)
-
26 ... 64 W, depending on model (see data sheet)
-
Ambient temperature-40 ... 55°C, depending on model (see data sheet)
-
Guarantee5 years
-
Service lifeL80 100,000 h at 35°C
-
Fire protectionFlammability (UL94): V2 Glow wire test (EN 60595-2-11): 850ºC
-
Emergency lightwith EB3: 700 lm, for 3 hours
