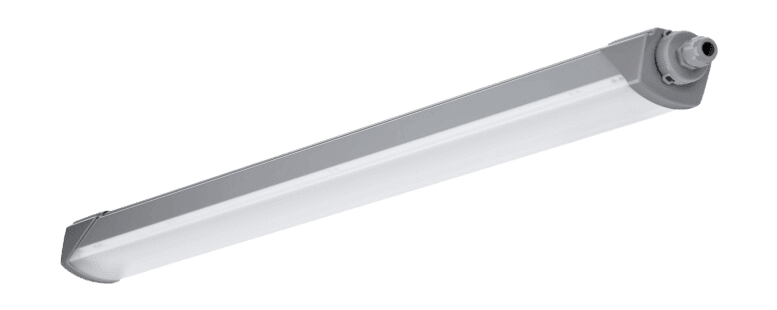

Moisture-proof luminaire LED BASE STP
SKU:
BSTP 0.6 20-840 ET BPC - 10171115
Description
Description
✅ Durable, compact and robust luminaire with simple installation
✅ One-piece profile made of extruded polycarbonate IP66/IP69K, up to 125 m/W and flicker-free
PWIS-free to guarantee a perfect finish in paint shops and coating areas
✅ Ideal for factories, workshops, warehouses, corridors, parking garages
✅ Quick and safe installation without tools: cable gland and plug are attached to the device carrier with a patented part
Wall or ceiling mounting possible
Moisture-proof luminaire LED BASE STP - 0.6 m / 2000 lm / Standard is in stock and will be shipped as soon as it is available again
€43,36
Base price
/
Not available
Shipping will be charged at checkout.
Availability for pickups could not be loaded
Data sheet EN: Download
Specification
Specification
-
Device typeMoisture-proof LED light
-
Enclosure protection classIP66, IP69(80°)
-
IK impact strength gradeIK10
-
Luminous flux2000 ... 5800 lm, depending on model (see data sheet)
-
Light color4000K
-
Color rendering index CRI>80
-
Flicker factorDALI dimmbare Versionen: <1%, Nicht dimmbare Versionen: <3%
-
Power factor>0.95 Full load
-
Housing materialHousing: White painted sheet steel, End caps: Polycarbonate, Diffuser: Extruded polycarbonate with UV protection upper part gray RAL 7035 lower part opal, Seal: PWIS-free silicone, Fixing clips: Stainless steel
-
Housing materialHousing: White painted sheet steel, End caps: Polycarbonate, Diffuser: Extruded polycarbonate with UV protection upper part gray RAL 7035 lower part opal, Seal: PWIS-free silicone, Fixing clips: Stainless steel
-
Weight
-
Cable entryCable gland
-
Power supply220-240 V AC, 0 ... 50/60Hz
-
Electrical connection3/5-pole plug-in terminal block, cable gland
-
Performance17 ... 44 W, depending on model (see data sheet)
-
17 ... 44 W, depending on model (see data sheet)
-
Ambient temperature-25 ... 40°C, depending on model (see data sheet)
-
Guarantee5 years
-
Service lifeL80B50 60,000 hours
-
Fire protectionFlammability (UL94): V2 Glow wire test (EN 60595-2-11): 850º
