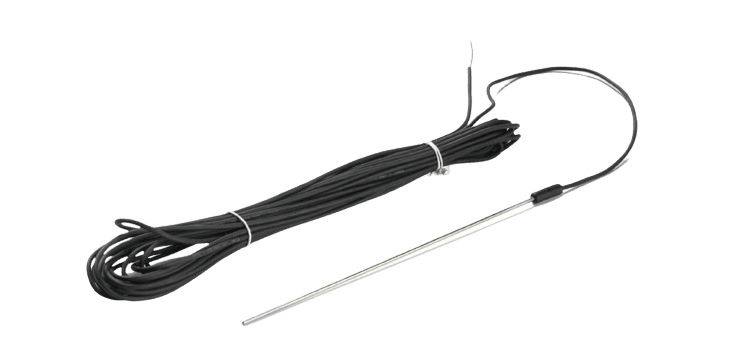

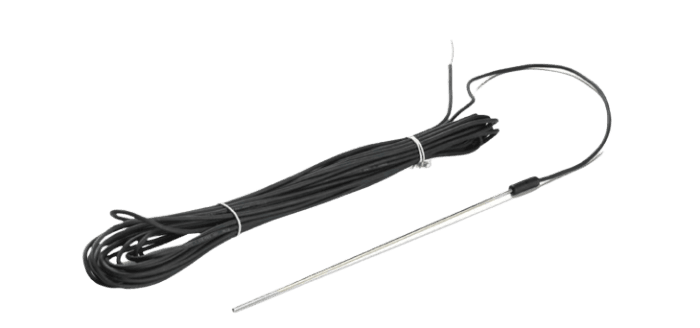

ETF-1198 - Water Sensor for Heating

SKU: 1060

Description

Ventilation sensor
- PT-1000, 1000 Ohm @ 0°C
- -50/+165°C
- Ø 6.5 x 200 mm, max. 0.5 atm,
- 2.5 m cable

Process connection

½" tapered screw thread ¼" tapered screw thread

Product variants

€175,10

Shipping will be charged at checkout.

Operating instructions EN: Download

Specification

Manufacturer

OJ Electronics

ETF-1198 - Water Sensor for Heating

From €166,70

Ventilation sensor
- PT-1000, 1000 Ohm @ 0°C
- -50/+165°C
- Ø 6.5 x 200 mm, max. 0.5 atm,
- 2.5 m cable
