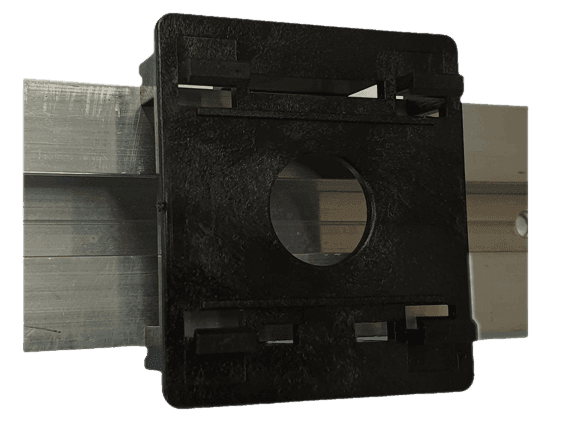

DIN rail adapter - suitable for all OJ Electronics PTH articles

SKU: 1514

Description

✅ Practical addition for all OJ Electronics differential pressure transmitters (e.g. PTH-3202, PTH-3202-DR, PTH-3202-DF, etc.)

✅ Devices are pre-assembled with DIN rail for quick installation on site

€14,80

Shipping will be charged at checkout.

Specification

Medium

Gases
Device type

Differential pressure transmitter
Device type

Compact device
Manufacturer

OJ Electronics

DIN rail adapter - suitable for all OJ Electronics PTH articles

€14,80

✅ Practical addition for all OJ Electronics differential pressure transmitters (e.g. PTH-3202, PTH-3202-DR, PTH-3202-DF, etc.)

✅ Devices are pre-assembled with DIN rail for quick installation on site
