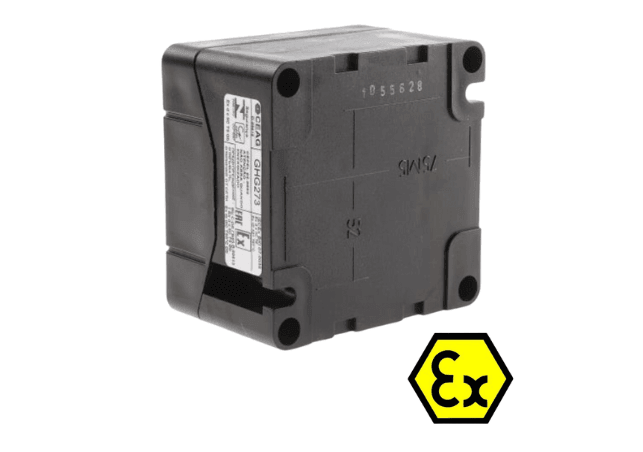

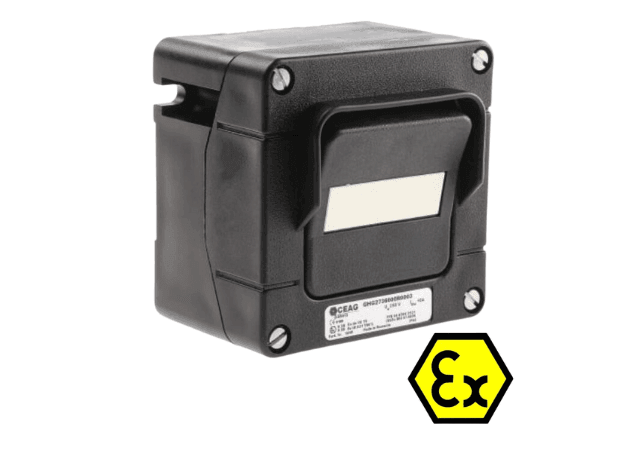

ATEX switch (AP) for zones 1 and 2, 250 V / 16 A
SKU:
1598
Description
Description
✅ Eaton control station switch, 250V / 16A black, IP 66
ATEX certification: Category: II 2 G EEx ed IIC T6 (Zones 1 and 2)
On/off switch, toggle switch and push-button switch options

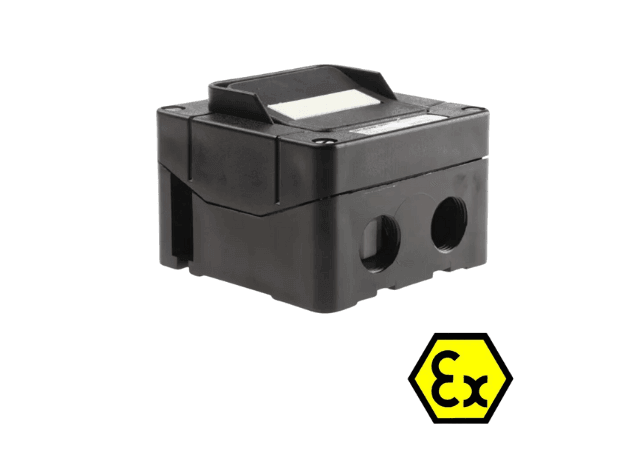

✅ Top or bottom cable entry suitable for 2 x M25 or 2 x M20 cable glands (not included)
✅ Large toggle switch surface for push-button for operation even when wearing gloves
ATEX switch (AP) for zone 1 and 2, 250 V / 16 A is in stock and will be shipped as soon as it is available again
€179,37
Base price
/
Not available
Shipping will be charged at checkout.
Delivery time: Available in 2-3 days
Availability for pickups could not be loaded
Specification
Specification
-
Device typeAccessories Ex-protected luminaires
-
Device typeCompact, AP
-
Enclosure protection classIP66
-
Housing dimensions115 x 85 x 64 mm
-
Cable entryTop or bottom cable entry suitable for 2 x M25 or 2 x M20 cable glands (not included)
-
Current and contact load capacity250 V AC / 16 A
-
Ambient temperature-40°C ... 80°C
-
ATEX certificationCategory: II 2 G EEx e d IIC T6 (Zones 1 and 2)
-
