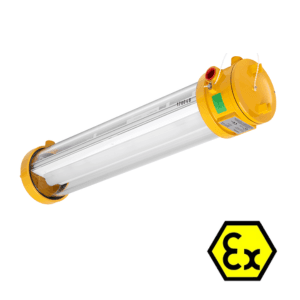

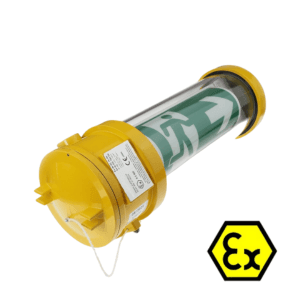

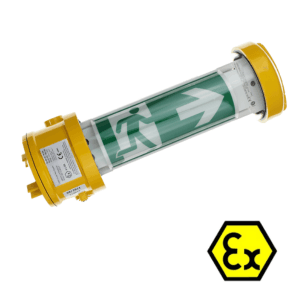

ATEX lamp KRATEx 300 Emergency EXIT, with pictogram, for ATEX zones 1, 21

SKU: 10287707

Description

✅ Explosion-proof luminaire with flameproof protection

✅ Suitable for the toughest environments, even outdoors

✅ Compliant with gas groups IIA, IIB, IIC

✅Available in 9 mm borosilicate glass or 5 mm UV-resistant, impact-resistant polycarbonate

With 1 hour (EB1) emergency lighting function

Profile material

Variant

Product variants

€910,40

Shipping will be charged at checkout.

Delivery time symbol

Delivery time: Available in 3-4 weeks

Specification

Device type

Stationary light Ex-protected
Enclosure protection class

IP66
IK impact strength grade

IK10, IK07, IK09
Light color

4000K
Color rendering index CRI

80
Power factor

>0,95
Weight

depending on variant
Power supply

220 ... 240 V AC
Electrical connection

3-pole plug-in terminal block, 2 inlets of 3/4 NPT for cable gland (not included)
Ambient temperature

0 ... 55°C
ATEX certification

II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC T85ºC Db
Guarantee

5 years
Service life

L80 50,000 at 25ºC
Emergency light

Emergency light 1 hour (EB1)

ATEX lamp KRATEx 300 Emergency EXIT, with pictogram, for ATEX zones 1, 21

From €647,15

✅ Explosion-proof luminaire with flameproof protection

✅ Suitable for the toughest environments, even outdoors

✅ Compliant with gas groups IIA, IIB, IIC

✅Available in 9 mm borosilicate glass or 5 mm UV-resistant, impact-resistant polycarbonate

With 1 hour (EB1) emergency lighting function
