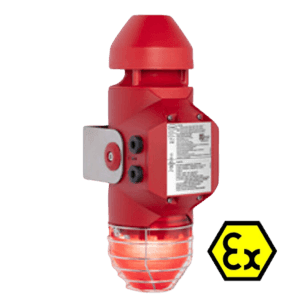

ATEX acoustic-optical signaling device up to 120 dB(A) / XENON / LED / ALU
SKU:
1608
Description
Description
✅ Latest generation of acoustic-visual signaling devices
Ex d / Ex e connection rooms
✅ Optical solutions with 5 ... 21 J XENON and high-performance LED with various light modes and 4 light channels
Acoustic solutions with directional or omnidirectional horn with up to 120 dB(A)@1m, 4 sound channels and 64 preconfigured tones
✅ 4 power levels configurable
✅ Stainless steel brackets, fixings and protective grille included
EN54 / DNV compliant
ATEX acoustic-optical signaling device up to 120 dB(A) / XENON / LED / ALU is in stock and will be shipped as soon as it is available again
€1.348,00
Base price
/
Not available
Shipping will be charged at checkout.
Delivery time: Available in 3-4 weeks
Availability for pickups could not be loaded
Specification
Specification
-
Device typeSignal horn/light Ex-protected
-
Device typeCompact
-
Enclosure protection classIP66
-
Housing materialAluminum, powder-coated, seawater-resistant, Horn material: PC/PBT, Light cover material: Polycarbonate, prismatic, Protective cover material: Polycarbonate (PC protective cover), Cage material: Stainless steel
-
Housing materialAluminum, powder-coated, seawater-resistant, Horn material: PC/PBT, Light cover material: Polycarbonate, prismatic, Protective cover material: Polycarbonate (PC protective cover), Cage material: Stainless steel
-
Power supply12 ... 27.20 V
-
Electrical connectionCable glands: 1 x M20 Ø 4 - 13 mm + 1 x M25 Ø 7 - 17 mm, Connection terminals solid max. 4 mm², Fine-wire terminals max. 2.5 mm²
-
Ambient temperature-40°C ... 70°C (T4)
-
Storage temperature-60°C ... 70°C
-
ATEX certificationEuropean Union (ATEX) IECEx United Kingdom, II 2 G Ex db eb IIC T4 Gb, EPS 22 ATEX 1 224X, II 2 D Ex tb IIIC T100 °C Db, ATEX (BVIS), IECEx (BVIS), ATEX (EUK), IECEx EPS 22.0046X, Ex db eb IIC T4 Gb, IECEx EPS 22.0046X, Ex tb IIIC T100 °C Db
-
ColorHousing color: red, similar to RAL 3020
