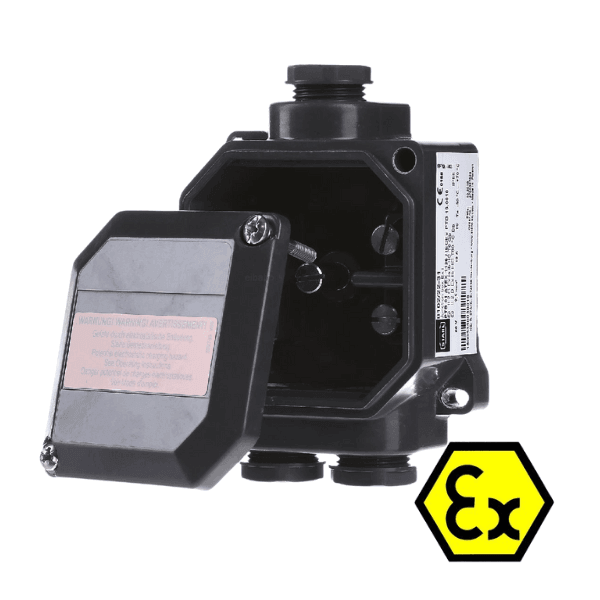

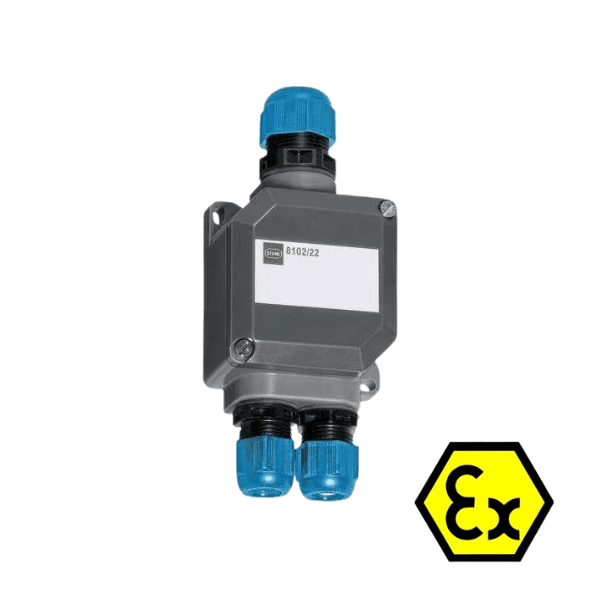

ATEX-Abzweigdosen Reihe 8102

SKU: 218559_8102/21-32

Description

✅ Kompakte Abzweigdosen – Ideal für den Einsatz in Ex-Zonen 1, 2, 21 und 22
✅ Schutzart IP66 – Schutz vor Staub und Wasserstrahlen
✅ 5 Mantelklemmen – 4 für elektrische Energie, 1 als PE-Anschlussstelle
✅ Maximaler Betriebsstrom – Bis zu 25 A
✅ Betriebstemperatur – Von -50°C bis +70°C ja nach Variante

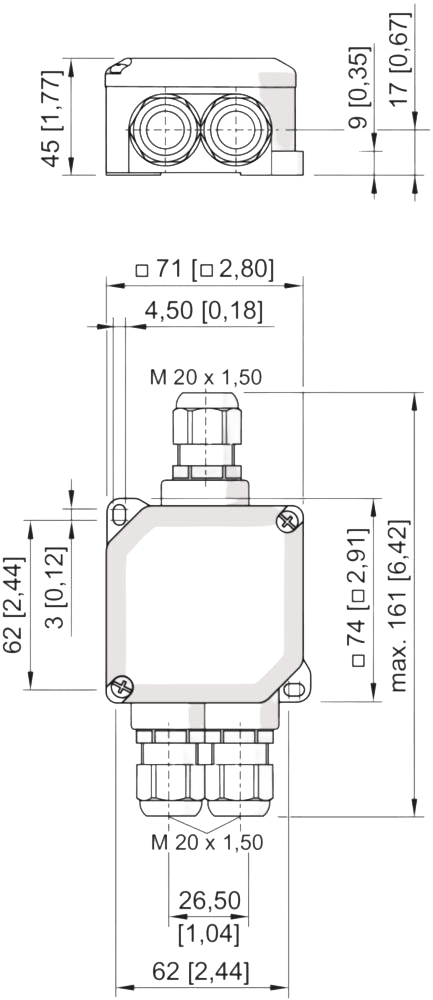

✅ Maße – 116 mm x 71 mm x 45 mm
✅ Anschlussmöglichkeiten – 3 x M20x1,5 Anschlussmöglichkeiten
Material – GfK, äußerst robust, halogen- und silikonfrei

 Zertifiziert für – Ex e Anwendungen:
       II 2 G Ex eb IIC T6 / T5 G
       II 2 D Ex tb IIIC T80 °C / T90 °C Db
      Spannung – bis 690 V Betriebsspannung, max. Betriebsstrom –  16/25 A (T6/T5)
      Klemmbereich – 2 x 4 mm² oder 2 x 2,5 mm²  für sichere Verbindungen

✅ Zertifiziert für – Ex i Anwendungen
      II 2 G Ex ia ib IIC T6 Gb
      II 2 D Ex tb IIIC T80 °C Db
      Spannungsauswahl – Bis 60 V Betriebsspannung, max. Betriebsstrom – 10 A (T6)
      Klemmbereich – 2 x 2,5 mm²  für sichere Verbindungen





Abzweigdose Type:
Umgebungstemperatur:
Einführung/Klemmbereich
€74,73
Shipping will be charged at checkout.
Delivery time symbol Delivery time: Available in 1-2 weeks

Specification

  • Device type
    Abzweigdosen ATEX
  • Device type
    Compact
  • Enclosure protection class
    IP66
  • Weight
    332 g
  • Housing dimensions
    71 x 161 x 45 mm
  • Cable entry
    6,5 ... 14 mm, 4 ... 13 mm, 7 ... 13 mm
  • Electrical connection
    M20 Halbverschraubung, M20x1,5 Kabelverschraubung
  • Recommended cable cross-section
    2,5 mm², 4 mm²
  • Ambient temperature
    -40 °C ... +40 °C (T6) -40 °C ... +70 °C (T5), -40 °C ... +70 °C (T6), -50 °C ... +55 °C (T6) -50 °C ... +70 °C (T5), -50 °C ... +70 °C (T6)
  • ATEX certification
    II 2 G Ex eb IIC T6 / T5 Gb, II 2 D Ex tb IIIC T80 °C / T90 °C Db, II 2 G Ex ia ib IIC T6 Gb, II 2 D Ex tb IIIC T80 °C Db
