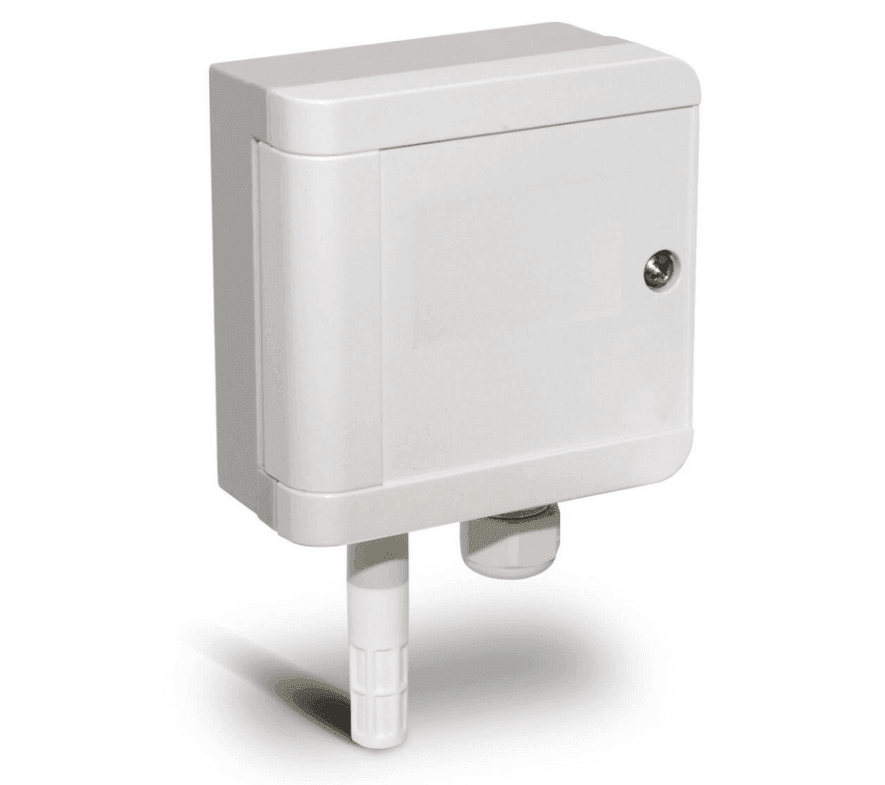

HumiGuard® HT501 - Humidity and temperature transmitter HVAC wall mounting

SKU: 1521/F/V

Description

✅ Combined sensor element for measuring humidity and, on request, temperature for wall mounting
✅ Relative humidity measuring range: 0 ... 100°rF
✅ Temperature measuring range from 0 ... 100/ -30 ... 70°C, for versatile applications
✅ Robust design, IP 67
✅ Exemplary areas of application: HVAC systems

Output signal
Temperature measuring range
€122,82
Shipping will be charged at checkout.

Approx. 5 working days

Specification
  • Medium
    Air, non-aggressive
  • Device type
    Humidity and temperature transmitter
  • Device type
    Wall version
  • Temperature measuring range
    0 ... 100°C, -30 ... 70°C
  • Temperature measuring accuracy
    0 ... 100°C, -30 ... 70°C
  • Media temperature
    -40 ... 80°C
  • Measuring range rel. humidity
    0 ... 100% rH
  • Measuring accuracy rel. humidity
    30...80% rF, bei 10 … 40°C: ±3% rF, <30% rF oder >80% rF bei 10 … 40°C: ±5% rF, Einfluss der Temperatur bei <10°C oder >40°C typ. ±0,06% rF/K
  • Protection class evaluation unit
    IP65
  • Sensor protection class
    Sensor or filter-dependent, with protective cage ZE07: IP20, Standard: with membrane filter ZE08 IP30, with PTFE sintered filter ZE05: IP65
  • Special features
    Sealing for increased requirements, e.g. condensation sealing against vibrations, PTFE sintered filter (IP65) on request
  • Output signal
    Analog output, Humidity only, 1x active, Humidity and temperature, 2x active
  • Immersion depth
    50 mm
  • Housing material
    PC (light gray / white)
  • Housing material
    PC (light gray / white)
  • Housing dimensions
    83 mm x 83 mm x 40 mm
  • Diameter
    ⌀12 mm
  • Power supply
    12 ... 30 V DC
  • Electrical connection
    Cable gland, screw terminals
  • Load resistance
    Output 0 ...10 V: >10 kΩ
  • Type of sensor element
    calibrated sensor chip calHT
  • Ambient temperature
    -40 ... 80°C
  • Storage temperature
    -40 ... 85°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

HumiGuard® HT501 - Humidity and temperature transmitter HVAC wall mounting

From €122,82

✅ Combined sensor element for measuring humidity and, on request, temperature for wall mounting
✅ Relative humidity measuring range: 0 ... 100°rF
✅ Temperature measuring range from 0 ... 100/ -30 ... 70°C, for versatile applications
✅ Robust design, IP 67
✅ Exemplary areas of application: HVAC systems

Availability

Power consumption

Specification Response time (s)

Minimum pipe diameter

Measuring range temperature Filter

HS Code

90 26 20

Output power min.

Moisture resolution

Analog output specification

1x 0 ... 10 V, 1x 4 ... 20 mA, 2x 0 ... 10 V, 2x 4 ... 20 mA

Product type Flow

Sensor protection class

Sensor or filter-dependent, with protective cage ZE07: IP20, Standard: with membrane filter ZE08 IP30, with PTFE sintered filter ZE05: IP65

Immersion depth

50 mm

Accuracy of the atmospheric pressure

Weight

Insulation resistance

Material connection head

Material sensor

Response time

Enclosure protection class

Type of sensor element

calibrated sensor chip calHT

Ambient temperature

-40 ... 80°C

ATEX certification

Fastening strap specification

Housing dimensions

83 mm x 83 mm x 40 mm

Device type

Wall version

Device type

Humidity and temperature transmitter

Sensor cable length

Conformity

Housing material

PC (light gray / white)

Temperature measuring range

0 ... 100°C, -30 ... 70°C

Temperature measuring accuracy

at 10 ... 40°C: ±0.8K

Product type Temperature

Silver level

Ambient temperature Device

Operating pressure

Medium

Air, non-aggressive

Pressure measuring range

Product type Print

Test mark

Switching differential

Switching capacity

Switching point

Operating voltage

Digital output

Own consumption

Measuring range CO₂

Measuring accuracy relative humidity

30...80% rF, bei 10 … 40°C: ±3% rF, <30% rF oder >80% rF bei 10 … 40°C: ±5% rF, Einfluss der Temperatur bei <10°C oder >40°C typ. ±0,06% rF/K

Product type Humidity

Reaction time measurement Co.

Power supply

12 ... 30 V DC

Manufacturer

Product type HVAC

Analog signal

Power consumption max

Maximum pressure

Display

Electrical connection

Cable gland, screw terminals

Operating temperature

Product type fill level

Relay output specification

Load resistance

Output 0 ...10 V: >10 kΩ

Ambient humidity

Ambient temperature Maximum Celsius

Ambient temperature (min. °C)

Compressive strength

Media temperature

-40 ... 80°C

Product type

Process connection

Temperature gradient

Measuring resistor

Differential pressure max

Accuracy of the output signal LCD Modbus

Flow measuring range

Signal output

Process connection 1

Switching function with flow

Signal display with flow

Signal output flow

Analog output

Notes

Minimum switching capacity

Optimum run-out distance

Optimum run-in distance

Reproducibility of the output signal

Signal display circuit

Current and contact load capacity

Power supply tolerance

Overvoltage category

Pollution class

Analog input_CO_

Digital input

Measuring range relative humidity

0 ... 100% rH

Potentiometer

Potentiometer output

Scale range

Analog input

Analog input_CO2

Installation depth

Digital outputs

Digital inputs

Error inputs

Ambient temperature1

Color

Output signal

Analog output, Humidity only, 1x active, Humidity and temperature, 2x active

Recommended cable cross-section

Signal output Sensor short circuit

Signal output sensor break

Outside diameter

Inner diameter

Thread

Temperature range

Lining

Diameter

⌀12 mm

Flow measurement accuracy

Setting range

Sensor response length

Capillary tube length

Protection class

Material

Measuring accuracy pressure relative

Temperature compensation

Country of origin

Germany

Vacuum resistance

Hysteresis

Repeatability

Material contact

Bursting pressure

Measuring range atmospheric pressure

Measuring range pressure V2

Short-circuit protection

Max Bürde

Reverse polarity protection

Accuracy of VOC measurement

Measuring range VOC

Media compatibility

Overload pressure

Alarm

Measuring range VOC1

Relay output

Power (kW)

Heat dissipation

Minimum load

Supply output

Cable trenches

Storage temperature

-40 ... 85°C

Fuse

Measuring accuracy_CO_

Front cover

Interface

Power supply

Efficiency

Long-term stability

Preset switching point

Customs tariff number

90 26 20 20

Pulley

Media temperature Max

Media temperature min
