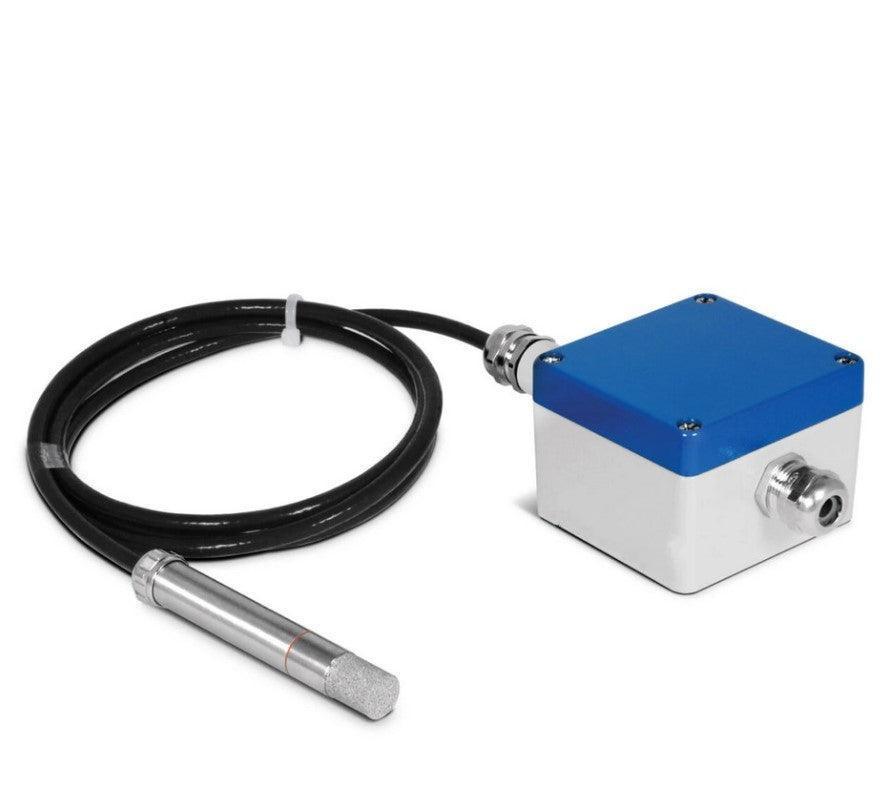

HumiGuard® HT215- Humidity and temperature transmitter Industrial transmitter Two-part MODBUS

SKU: 1527/D

Description

✅ Sensors for humidity and temperature in wall-mounted version, for digital data transmission RS485 / MODBUS-RTU

✅ for industrial transmitters, robust and high accuracy

Transmitter with remote sensor

✅ High temperature sensor, measuring range: -80 ... 200°C

✅ Display optional

✅ Example area of application: industrial automation, agriculture, food and pharmaceutical logistics, climate and environmental monitoring

Display
€782,94
Shipping will be charged at checkout.

Approx. 5 working days

Specification
  • Medium
    Air, non-aggressive
  • Device type
    Humidity and temperature transmitter, Sensors for humidity and temperature for digital data transmission RS485 / MODBUS-RTU, Output of the humidity-dependent variables of the hx diagram and temperature
  • Device type
    Wall version with two-part, remote probe
  • Temperature measuring range
    -80 ... 200°C
  • Temperature measuring accuracy
    -80 ... 200°C
  • Media temperature
    -80 ... 200°C
  • Measuring range rel. humidity
    0 ... 100% rH
  • Measuring accuracy rel. humidity
    10 ... 90% rF bei 23°C: ±1,5% rF, <10% rF oder >90% rF: ±2% rF, Temperatureinfluss ҂ 23°C: <0,02% rF/K
  • Display
    Display optional, 2 lines, 3 digits + 1 decimal place, Display rel. humidity and temperature
  • Protection class evaluation unit
    IP65
  • Sensor protection class
    IP65
  • Special features
    Probe up to 200°C, Probe in two parts, Probe: 64 mm probe tube, 1.5 m special Teflon cable, 104 mm probe tip, Ø20mm probe tube, Ø15mm probe, Modbus, hx sizes, Display optional
  • Output signal
    Digital output
  • Immersion depth
    max. ~93 mm
  • Process connection
    Duct mounting
  • Housing material
    Die-cast aluminum
  • Material sensor
    Stainless steel
  • Housing material
    Die-cast aluminum
  • Housing dimensions
    80 mm x 75 mm x 57 mm
  • Diameter
    Ø15 mm
  • Power supply
    10 ... 30 V DC
  • Electrical connection
    Cable gland: clamping range Ø3 ... 7mm, screw terminals
  • Power consumption max
    Eigenstrombedarf Transmitter: <0,88 mA, Eigenstrombedarf Transmitter + Sonde: <1,95 mA , Eigenstrombedarf Transmitter + Sonde + Display: < 2,10 mA
  • Recommended cable cross-section
    max. 1.5 mm²
  • Response time
    bei v=2 m/s: <10 s
  • Switching differential
    Hyterese: <1% rF
  • Type of sensor element
    FE09, Pt1000 1/3-DIN Kl.B
  • Ambient temperature
    -40 ... 85°C
  • Storage temperature
    -40 ... 85°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20
