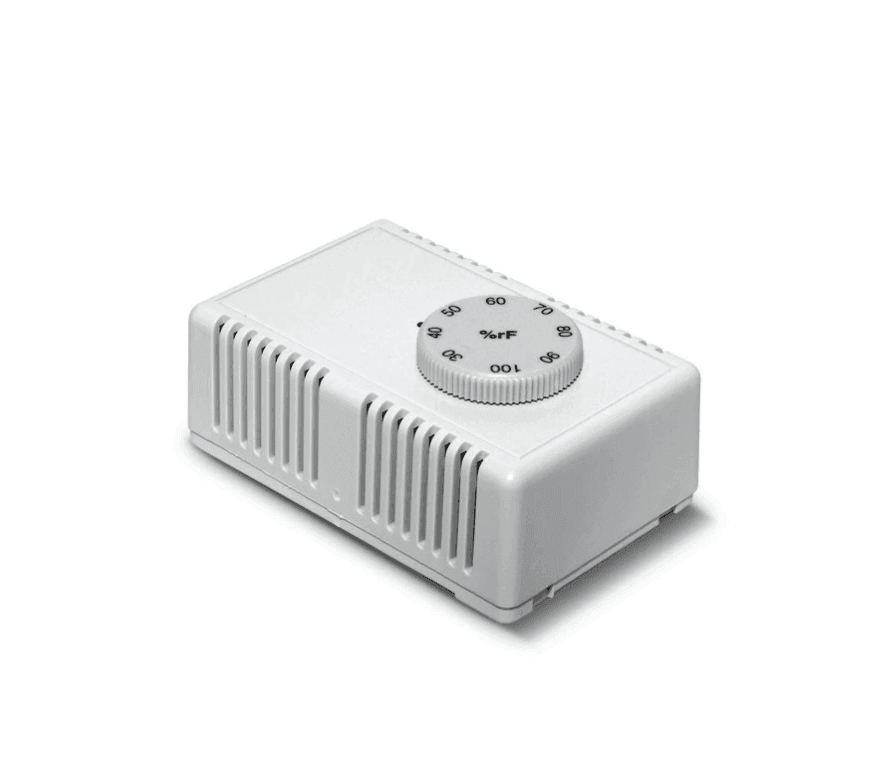

HumiGuard® HS302 - Room humidistat
SKU:
1541/1
Description
Description
✅Room hygrostat, energy self-sufficient,
✅ Very robust and reliable,
✅ Operating temperature up to 60°C,
✅ hhigh accuracy in the high humidity range
✅ lstable over time
✅ insensitive
✅ Exemplary areas of application: Food, electronics and textile industry, greenhouses
HumiGuard® HS302 - Room humidistat - Changeover contact max. 1x5A is in stock and will be shipped as soon as it is available again
€65,96
Base price
/
Not available
Shipping will be charged at checkout.
Availability for pickups could not be loaded
Specification
Specification
-
MediumAir, unpressurized, non-aggressive, non-condensing
-
Device typeRoom humidistat 1 Humidity changeover switch
-
Device typeCompact/channel version
-
Media temperature0 ... 60°C
-
Measuring range rel. humidity0 ... 100% rH
-
Measuring accuracy rel. humidity±3% RH, Temperature influence related to 23°C: ≤±0.02% rH/K
-
DisplayLCD, Digital display 2 lines, 3 digits + 1 decimal place approx. 21 mm x 40 mm², Digit height approx. 8 mm Temp. + humidity alternating Relay 1 + 2 current switching states
-
Switching pointStepless adjustment (potentiometer)
-
Protection class evaluation unitIP20
-
Special featuresSwitching output, energy self-sufficient
-
Setting range40 ... 90% rH
-
Output signalSwitching output: 1 changeover switch, potential-free
-
Switching output specificationInfinitely adjustable, 1 changeover switch, potential-free
-
Signal output Sensor short circuit<3,8 mA, >24 mA
-
Relay output specificationInfinitely adjustable, 1 changeover switch, potential-free
-
Immersion depth220 mm
-
Process connectionWall mounting, preferably slots in wind direction
-
Housing materialImpact-resistant plastic
-
Housing materialImpact-resistant plastic
-
Weight
-
Housing dimensions115 mm x 70 mm x 47 mm
-
Dimensions115 mm x 70 mm x 47 mm
-
Power supplyenergy self-sufficient
-
Electrical connectionConnection terminals in the housing
-
Recommended cable cross-sectionup to 1.5 mm²
-
Current and contact load capacity250 V AV, 5 A, resistive load, dehumidification, 250 V AV, 2 A, resistive load, humidification, 250 V AV, 1.5 A, inductive load, with gold contacts 125 V AC, 100 mA
-
Response timeat v= 2 m/s: 120 s
-
Minimum switching capacityMinimum switching current: 100 mA, with gold contacts: 1 mA
-
Type of sensor elementPolyga measuring element, hygrometric, water-resistant, washable
-
Ambient temperature0 ... 60°C
-
Storage temperature-30 ... 60°C
-
CertificatesCE
-
Country of origin
-
Customs tariff number
-
HS Code
-
Service life>6,000 cycles
-
Permissible air velocity0.2 ... 8 m/s
