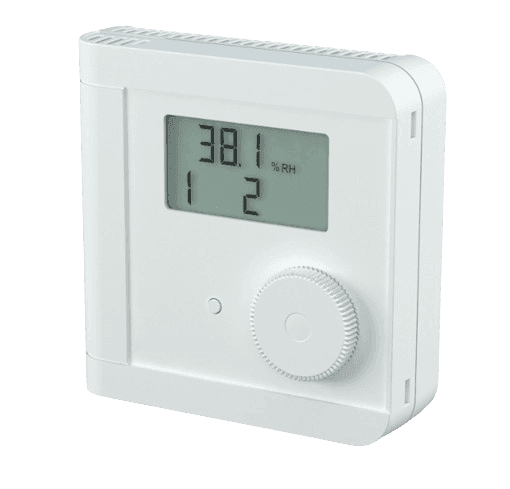

HumiGuard® HS300 – Indoor Humidity & Temperature Switch, Electronic Hygro/Thermostat
SKU:
1539/FT/V/0-50
Description
Description
Electronic hygro/thermostat,
Display of the current relay switching states,
Alternating display of relative humidity / temperature,
2 potential-free switching outputs,
configurable as normally closed or normally open contacts,
2 setpoints can be configured independently of each other
HumiGuard® HS300 - Humidity and temperature switch for indoor use, electronic hygro/thermostat is in stock and will be shipped as soon as it is available again
€161,06
Base price
/
Not available
Shipping will be charged at checkout.
Availability for pickups could not be loaded
Specification
Specification
-
MediumAir, unpressurized, non-aggressive, non-condensing
-
Device typeElectronic hygro (-thermo)stat, 2 relay contacts humidity, 2 relay contacts humidity + temperature
-
Device typeWall version
-
Temperature measuring range0 ... 50°C
-
Temperature measuring accuracy0 ... 50°C
-
Media temperature-40 ... 85°C
-
Measuring range rel. humidity0 ... 100% rH
-
Measuring accuracy rel. humidity±3% RH, Temperature influence related to 25°C: ≤±0.05% rH/K
-
DisplayLCD, Digital display 2 lines, 3 digits + 1 decimal place approx. 21 mm x 40 mm², Digit height approx. 8 mm Temp. + humidity alternating Relay 1 + 2 current switching states
-
Switching pointStepless adjustment (potentiometer)
-
Protection class evaluation unitIP30D
-
Sensor protection classIP30
-
Special featuresTemperature compensation
-
Setting range5 ... 95% rH, 0 ... 50°C
-
Output signalAnalog output, switching output
-
Switching output specification2 relay contacts, potential-free, normally open, NC/NO contact setting via DIP switch, infinitely adjustable
-
Signal output Sensor short circuit<3,8 mA, >24 mA
-
Relay output specification2 relay contacts, potential-free, normally open, NC/NO contact setting via DIP switch, infinitely adjustable
-
Process connectionWall mounting
-
Housing materialABS
-
Material sensorPC
-
Housing materialABS
-
Housing dimensions81 mm x 81 mm x 29 mm
-
Dimensions81 mm x 81mm x 29 mm
-
Power supply15 ... 30 V DC
-
Electrical connectionmax. 1 X Ø6.5 mm, 2 X Ø4.5 mm
-
Power consumption max≤30 mA
-
Recommended cable cross-sectionup to 1.5 mm²
-
Current and contact load capacity60 W / 62.5 VA, ≤48V DC/AC ≤2 A
-
Minimum switching capacitySwitching voltage ≥100 µV
-
Protection classIII
-
Switching differential0,5 ... 9% rH, 0,1 ... 10 k
-
Ambient temperature-30 ... 60°C
-
Storage temperature-40 ... 85°C
-
CertificatesCE
-
Country of origin
-
Customs tariff number
-
HS Code
-
Service life>100,000 cycles
