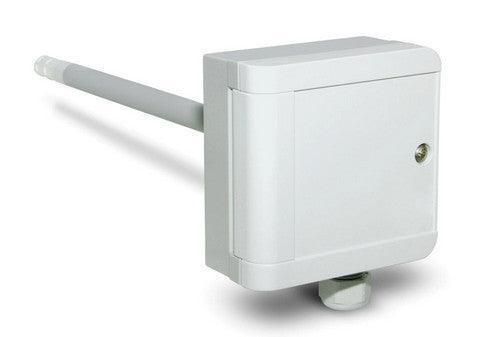

HumiGuard HT111 - Humidity and temperature transmitter HVAC duct version

SKU: 1326/F/V

Description

✅ Reliable and precise measurement technology for optimum measurement of humidity and temperature as a duct version

Two analog output signals (4 ... 20 mA; 0 ... 10 V) for humidity and temperature

✅ Optionally also available for humidity only

✅ Exemplary areas of application: HVAC systems

Analog output specification
Measured variable
€122,82
Shipping will be charged at checkout.

Specification
  • Medium
    Air, non-aggressive
  • Device type
    Humidity and temperature transmitter
  • Device type
    Compact/channel version
  • Temperature measuring range
    0 ... 100°C, -30 ... 70°C
  • Temperature measuring accuracy
    0 ... 100°C, -30 ... 70°C
  • Media temperature
    -40 ... 80°C
  • Measuring range rel. humidity
    0 ... 10% rH
  • Measuring accuracy rel. humidity
    30...80% rF, bei 10 … 40°C: ±3% rF, <30% rF oder >80% rF bei 10 … 40°C: ±5% rF, Einfluss der Temperatur bei <10°C oder >40°C typ. ±0,06% rF/K
  • Protection class evaluation unit
    IP65
  • Sensor protection class
    with protective cage ZE07: IP20, with membrane filter ZE08: IP30, with PTFE sintered filter ZE05: IP65
  • Special features
    Sealing for increased requirements, e.g. condensation sealing against vibrations, PTFE sintered filter (IP65) on request
  • Output signal
    Analog output, Humidity only, 1x active, Humidity and temperature, 2x active
  • Immersion depth
    220 mm
  • Process connection
    Duct mounting
  • Housing material
    PC (light gray / white)
  • Material sensor
    Sensor and filter-dependent
  • Housing material
    PC (light gray / white)
  • Housing dimensions
    83 mm x 83 mm x 40 mm
  • Diameter
    ⌀12 mm
  • Power supply
    12 ... 30 V DC
  • Electrical connection
    Cable gland, screw terminals
  • Load resistance
    Output 0 ...10 V: >10 kΩ
  • Type of sensor element
    calibrated sensor chip calHT
  • Ambient temperature
    -40 ... 80°C
  • Storage temperature
    -40 ... 85°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

HumiGuard HT111 - Humidity and temperature transmitter HVAC duct version

From €122,82

✅ Reliable and precise measurement technology for optimum measurement of humidity and temperature as a duct version

Two analog output signals (4 ... 20 mA; 0 ... 10 V) for humidity and temperature

✅ Optionally also available for humidity only

✅ Exemplary areas of application: HVAC systems

Availability

Power consumption

Specification Response time (s)

Minimum pipe diameter

Measuring range temperature Filter

HS Code

90 26 20

Output power min.

Moisture resolution

Analog output specification

1x 0 ... 10 V, 1x 4 ... 20 mA, 2x 0 ... 10 V, 2x 4 ... 20 mA

Product type Flow

Sensor protection class

with protective cage ZE07: IP20, with membrane filter ZE08: IP30, with PTFE sintered filter ZE05: IP65

Immersion depth

220 mm

Accuracy of the atmospheric pressure

Weight

Insulation resistance

Material connection head

Material sensor

Sensor and filter-dependent

Response time

Enclosure protection class

Type of sensor element

calibrated sensor chip calHT

Ambient temperature

-40 ... 80°C

ATEX certification

Fastening strap specification

Housing dimensions

83 mm x 83 mm x 40 mm

Device type

Compact/channel version

Device type

Humidity and temperature transmitter

Sensor cable length

Conformity

Housing material

PC (light gray / white)

Temperature measuring range

0 ... 100°C, -30 ... 70°C

Temperature measuring accuracy

at 10 ... 40°C: ±0.8K

Product type Temperature

Silver level

Ambient temperature Device

Operating pressure

Medium

Air, non-aggressive

Pressure measuring range

Product type Print

Test mark

Switching differential

Switching capacity

Switching point

Operating voltage

Digital output

Own consumption

Measuring range CO₂

Measuring accuracy relative humidity

30...80% rF, bei 10 … 40°C: ±3% rF, <30% rF oder >80% rF bei 10 … 40°C: ±5% rF, Einfluss der Temperatur bei <10°C oder >40°C typ. ±0,06% rF/K

Product type Humidity

Reaction time measurement Co.

Power supply

12 ... 30 V DC

Manufacturer

Product type HVAC

Analog signal

Power consumption max

Maximum pressure

Display

Electrical connection

Cable gland, screw terminals

Operating temperature

Product type fill level

Relay output specification

Load resistance

Output 0 ...10 V: >10 kΩ

Ambient humidity

Ambient temperature Maximum Celsius

Ambient temperature (min. °C)

Compressive strength

Media temperature

-40 ... 80°C

Product type

Process connection

Duct mounting

Temperature gradient

Measuring resistor

Differential pressure max

Accuracy of the output signal LCD Modbus

Flow measuring range

Signal output

Process connection 1

Switching function with flow

Signal display with flow

Signal output flow

Analog output

Notes

Minimum switching capacity

Optimum run-out distance

Optimum run-in distance

Reproducibility of the output signal

Signal display circuit

Current and contact load capacity

Power supply tolerance

Overvoltage category

Pollution class

Analog input_CO_

Digital input

Measuring range relative humidity

0 ... 10% rH

Potentiometer

Potentiometer output

Scale range

Analog input

Analog input_CO2

Installation depth

Digital outputs

Digital inputs

Error inputs

Ambient temperature1

Color

Output signal

Analog output, Humidity only, 1x active, Humidity and temperature, 2x active

Recommended cable cross-section

Signal output Sensor short circuit

Signal output sensor break

Outside diameter

Inner diameter

Thread

Temperature range

Lining

Diameter

⌀12 mm

Flow measurement accuracy

Setting range

Sensor response length

Capillary tube length

Protection class

Material

Measuring accuracy pressure relative

Temperature compensation

Country of origin
