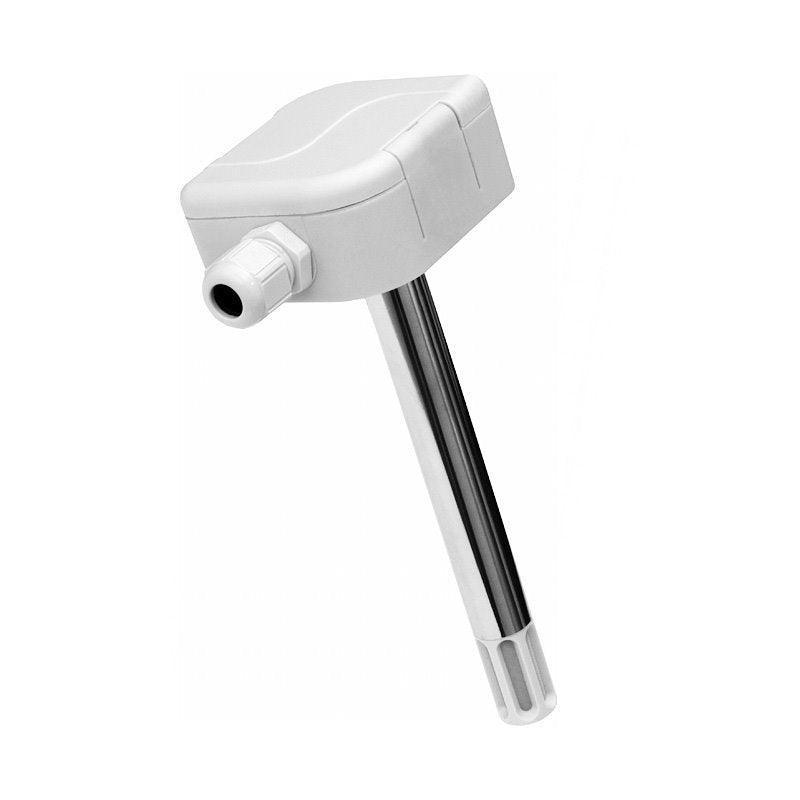

HumiGuard® HT100 - Humidity and temperature transmitter (2 x 4 ... 20 mA)
SKU:
1306/K
Description
Description
- Reliable and precise measurement technology for optimum measurement of humidity and temperature.
- Two analog output signals (4 ... 20 mA) for humidity and temperature.

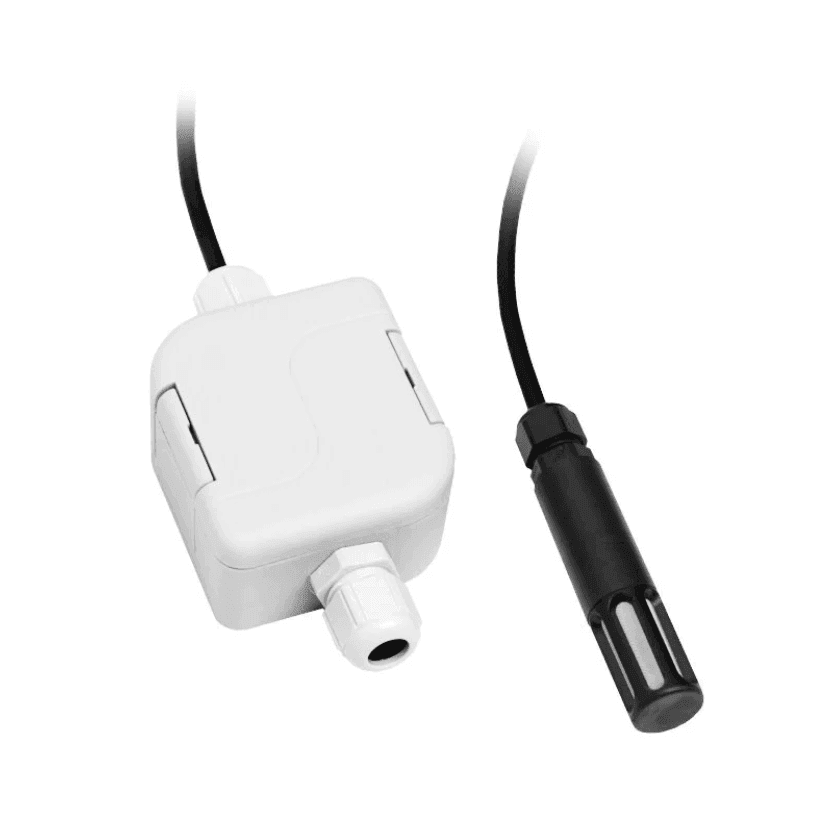

- Available either as a compact device or with a remote sensor.
HumiGuard® HT100 - Humidity and temperature transmitter (2 x 4 ... 20 mA) - Compact: Sensor and evaluation unit permanently installed is in stock and will be shipped as soon as it is available again
€249,00
Base price
/
Not available
Shipping will be charged at checkout.
Availability for pickups could not be loaded
Specification
Specification
-
MediumAir, unpressurized, non-aggressive, non-condensing
-
Device typeHumidity and temperature transmitter
-
Device typeCompact/channel version, with remote sensor
-
Temperature measuring rangeCompact design: -30°C ... 125°C, Remote sensor: -30°C ... 105°C
-
Temperature measuring accuracyCompact design: -30°C ... 125°C, Remote sensor: -30°C ... 105°C
-
Measuring range rel. humidity0 ... 100% rH
-
Measuring accuracy rel. humidityin the range 5 ... 95% rH at 23°C: ±2.5% rH
-
Protection class evaluation unitIP65
-
Sensor protection classIP40
-
Output signalAnalog output
-
Signal output Sensor short circuit<3,8 mA, >24 mA
-
Immersion depthCompact design: Standard length: 150 mm, alternatively: 250 mm
-
Process connectionDuct mounting
-
Housing materialPolyamides
-
Material sensorStainless steel DIN 1.4301
-
Housing materialPolyamides
-
Housing dimensions112 mm x 70 mm x 34 mm
-
DiameterØ18 mm
-
Power supply9 ... 30 V DC
-
Type of sensor elementPT 1000/3850
-
Ambient temperature-30 ... 80°C
-
CertificatesCE
-
